Using 3D Maps on gaiagps.com

This article will give you an overview of using 3D maps on gaiagps.com. You will learn how to access 3D maps and use the 3D map controls on the website.

With 3D maps, you can scope out new terrain, plan perfect routes, and discover areas in 3D mode. You can view the entire Gaia GPS map catalog in 3D mode, as well as layer multiple maps on top of each other to view them all at once in a 3D view.

• Overview
• Toggle on 3D Maps
• Adjust 3D Pitch View
• Mouse and Keyboard Controls for 3D Mode
• Research Terrain, Create Routes and View Your Tracks on 3D Maps
• Turn Off 3D Mode

Note: 3D maps are currently available with a Free or Premium Membership on the website and with a Premium Membership in the Android App (Version 2023.4 and newer).

Toggle on 3D Maps

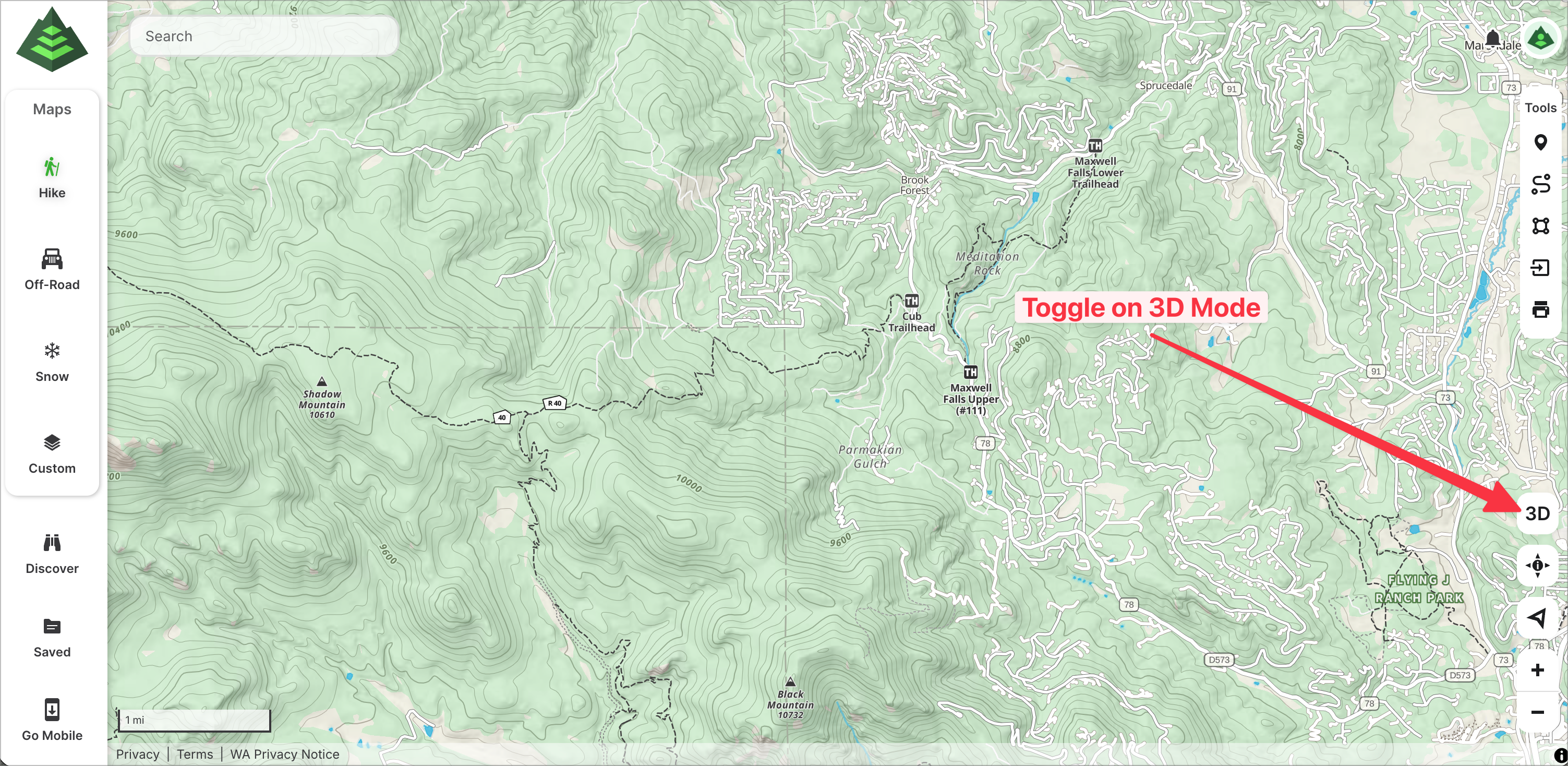

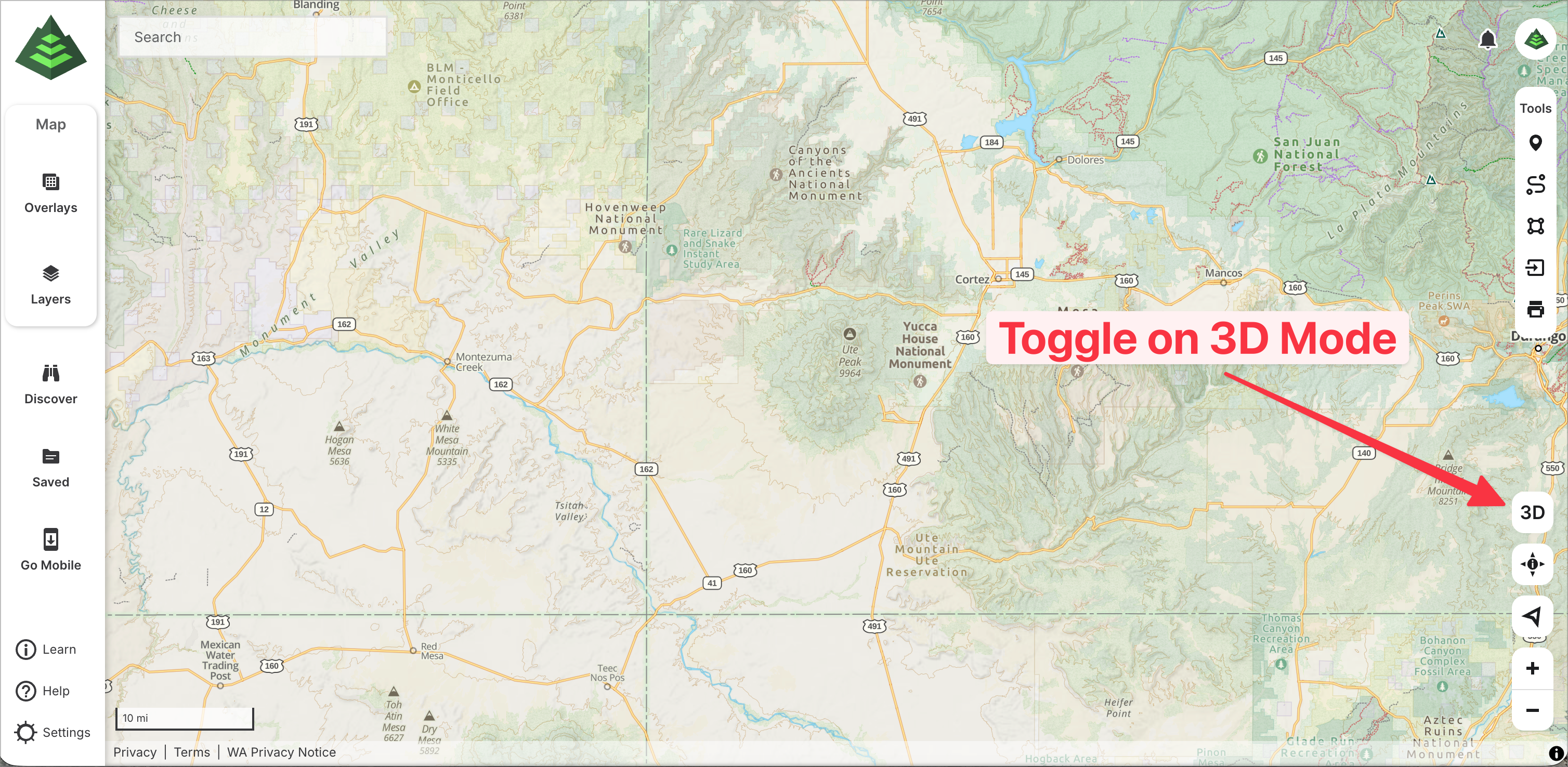

On gaiagps.com, pull up any map in the Gaia GPS map catalog. Turn on 3D mode by tapping the “3D” button on the lower right-hand corner of the screen.

Adjust 3D Mode Pitch View

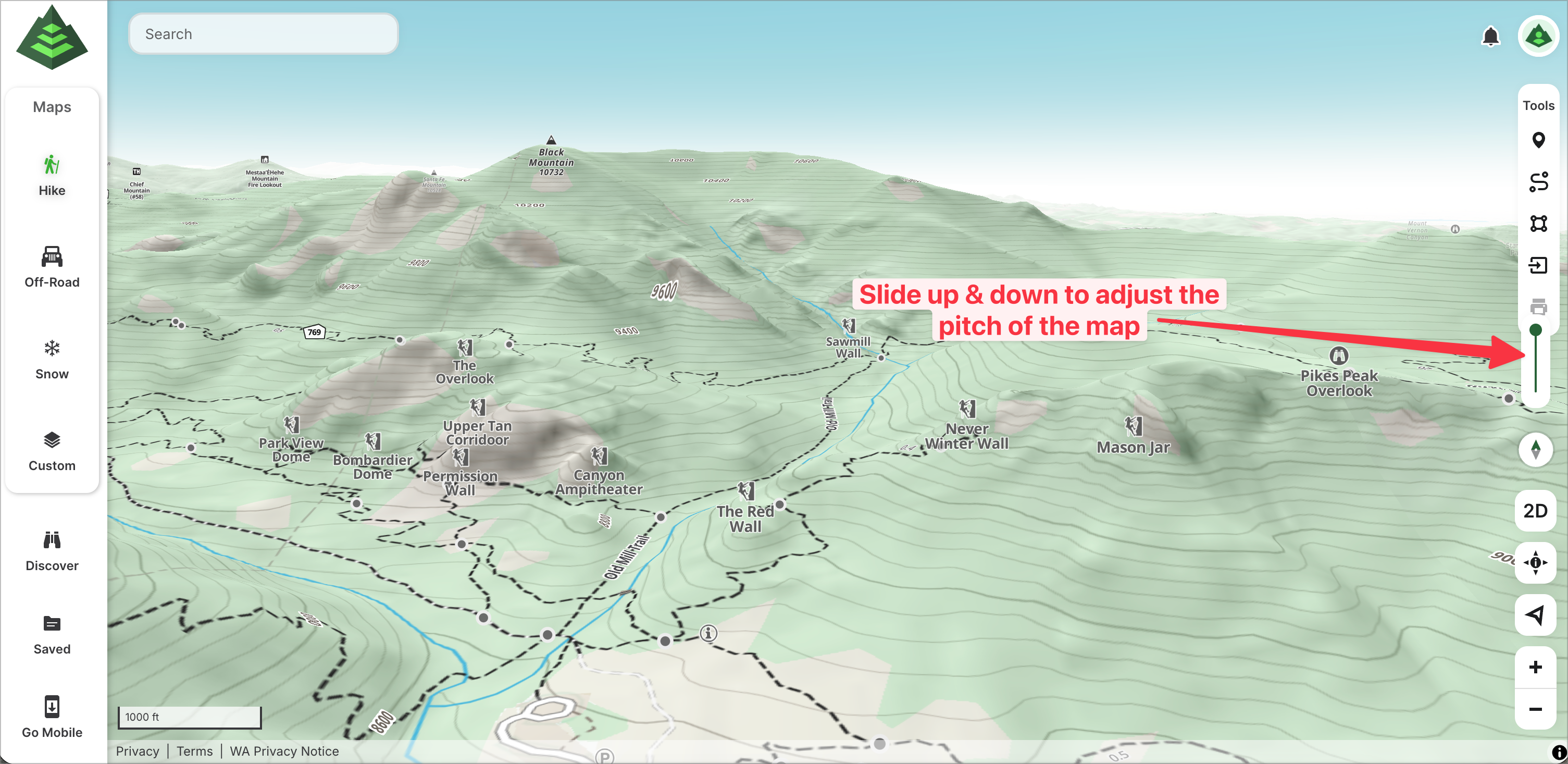

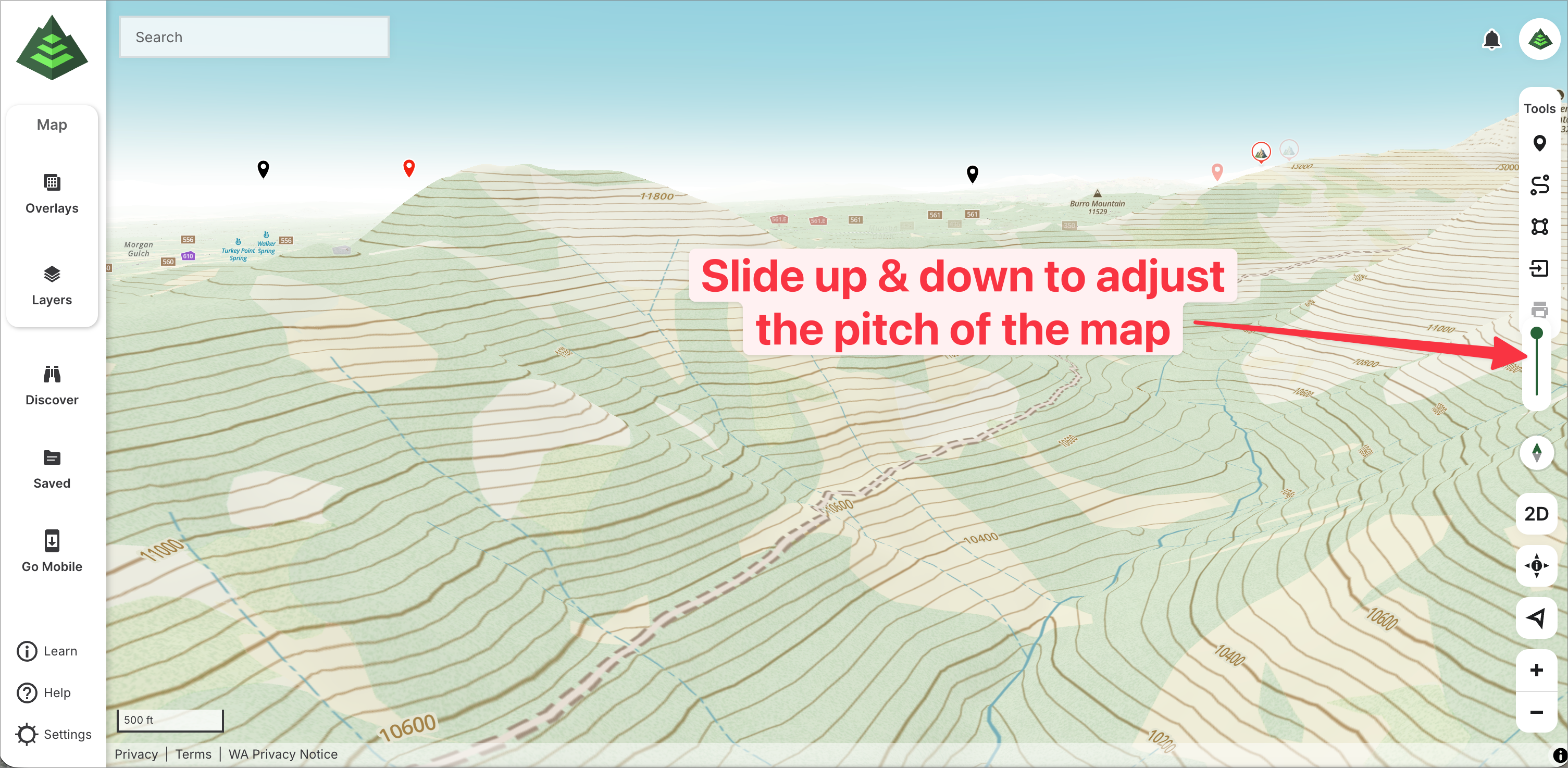

In 3D mode, use the vertical toggle slider to adjust the pitch of the map. Adjusting the pitch allows you to view the map from a bird’s eye view or sprawled out before you as if you are standing on a mountain top.

Mouse and Keyboard Controls for 3D Mode

Rotate the map so you can see all aspects of the terrain in 3D mode by holding down “control” on your keyboard and left-clicking and dragging the mouse.

Use the mouse scroll controls to zoom in on the map and pan out for a larger view of the area.

Research the Terrain, Create Routes and View Your Tracks on 3D Maps

All of Gaia GPS’s signature navigation and route planning tools can be used in 3D mode. The 3D vantage point gives you a new perspective of the landscape, to help you research terrain and plan adventures:

• Create a route in 3D mode so you can see the terrain and dimension of the land that you’ll encounter on your journey.
• Drop waypoints in places you’ll need to remember. You have a whole new perspective in 3D mode that can be useful for labeling viewpoints in particular.
• Pull up your recorded tracks and relive your adventures on Gaia GPS’s high-resolution 3D satellite map.
• Import GPX, KLM, and other files and data to your Gaia GPS account, and view these files in 3D mode on the web.

Turn off 3D Mode

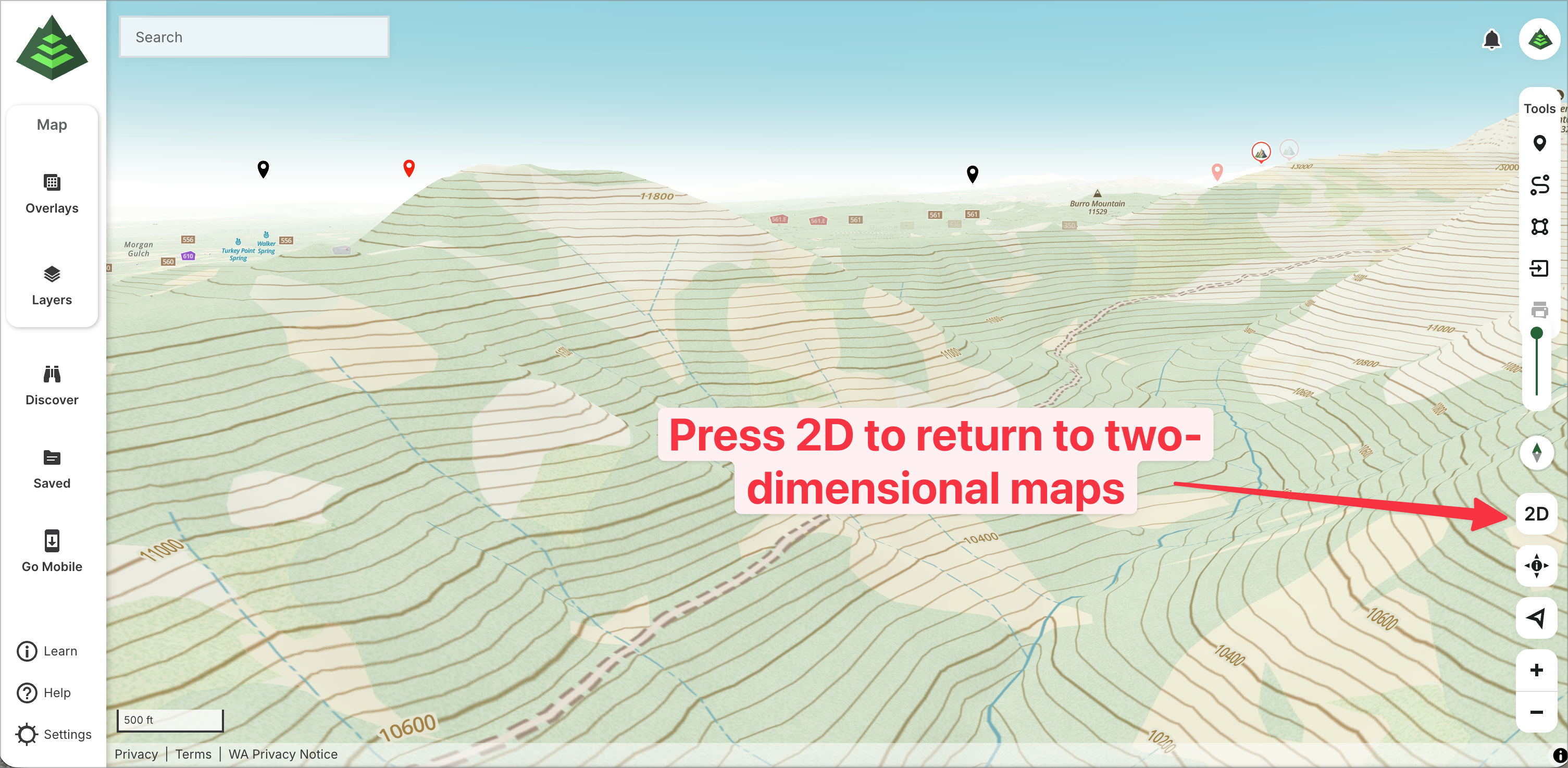

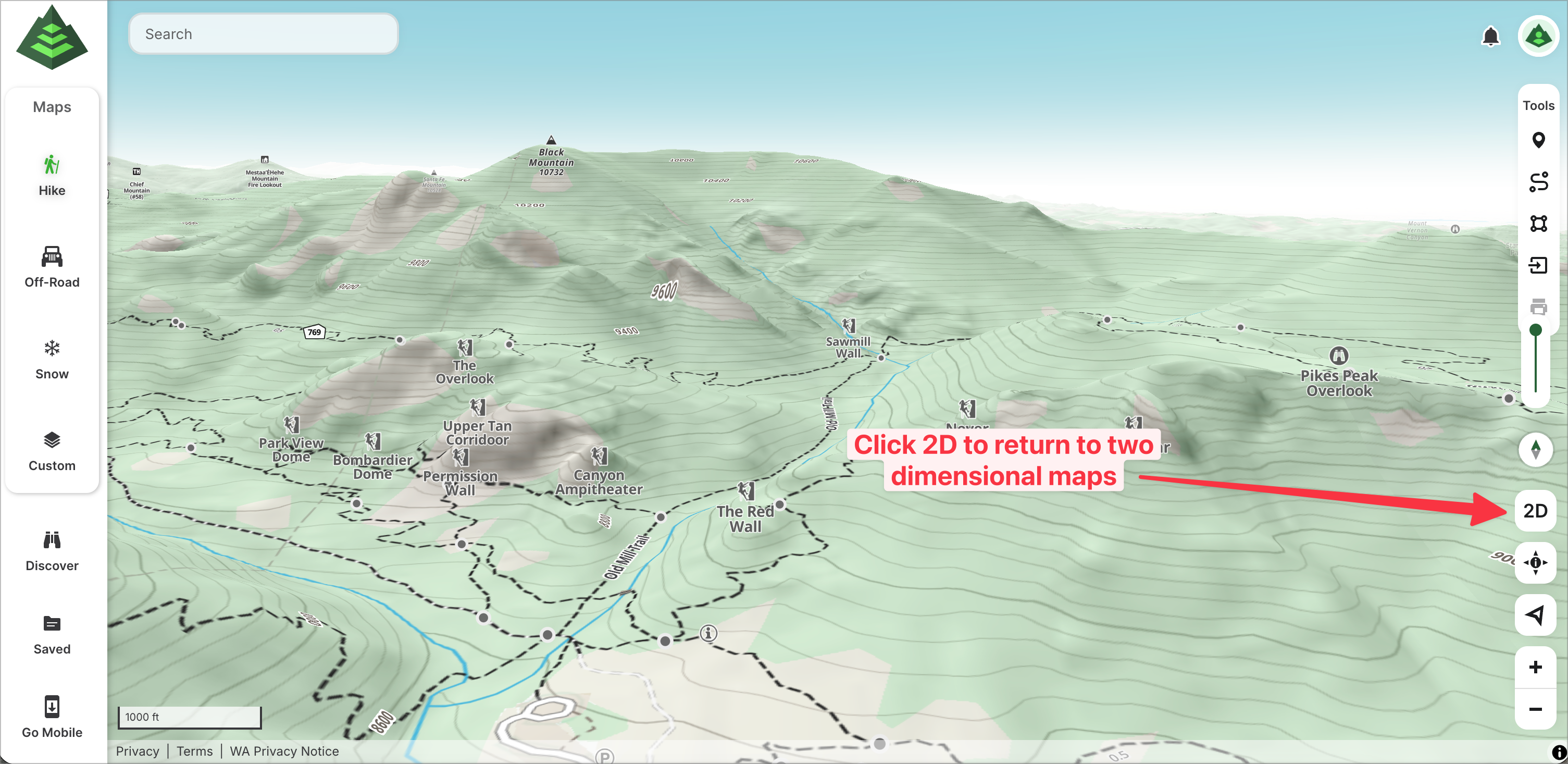

Press the 2D button to turn off 3D mode and return to two-dimensional maps.
