This article will show you how to create a route on the website. If you need to create a route in the app, please follow these steps:
This article will also show you how to plan a trip along an existing trail or road with Snap-to-Trail mode, measure point-to-point distances using the Straight-Line mode, generate elevation profiles for routes, and calculate the length of your route.
- Create a Route With the Old Editor
- Create a Route With the New Editor
- Save the Route
- Edit your Routes
- Snap-to-Trail Notes
- Combined Snap-to-Trail and Straight-Line Routes
- Straight-Line Notes

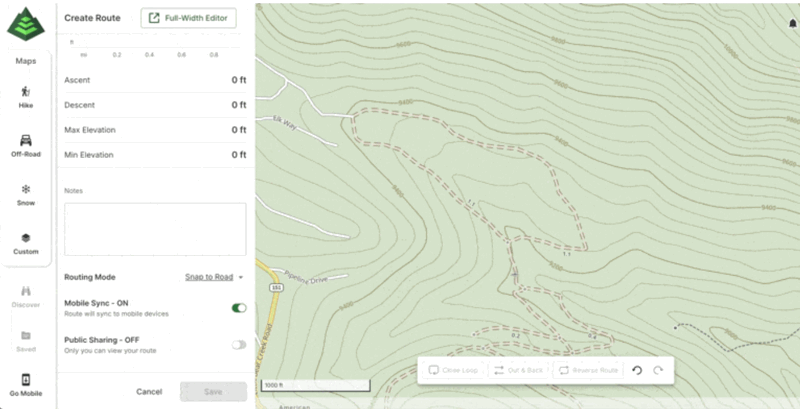

Create a Route With the Old Editor

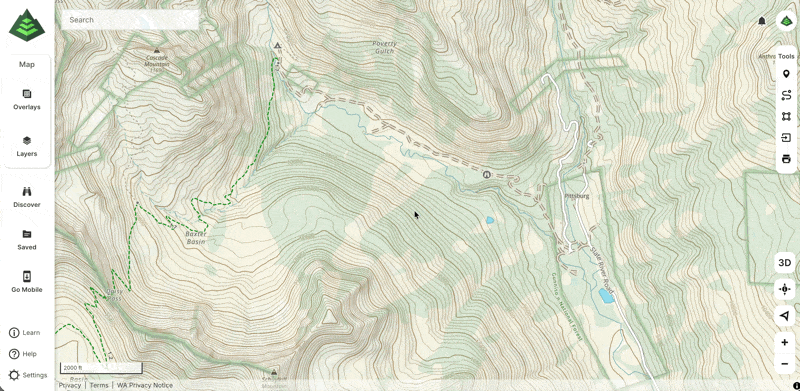

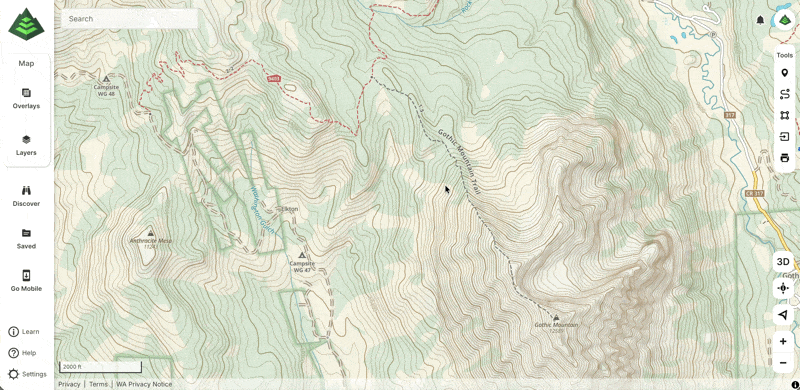

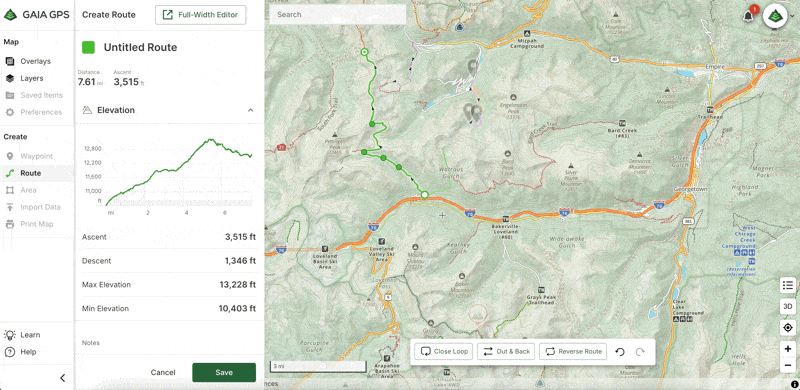

1. Go to www.gaiagps.com/map to view the main map.
2. Search for a place you would like to plan a route.

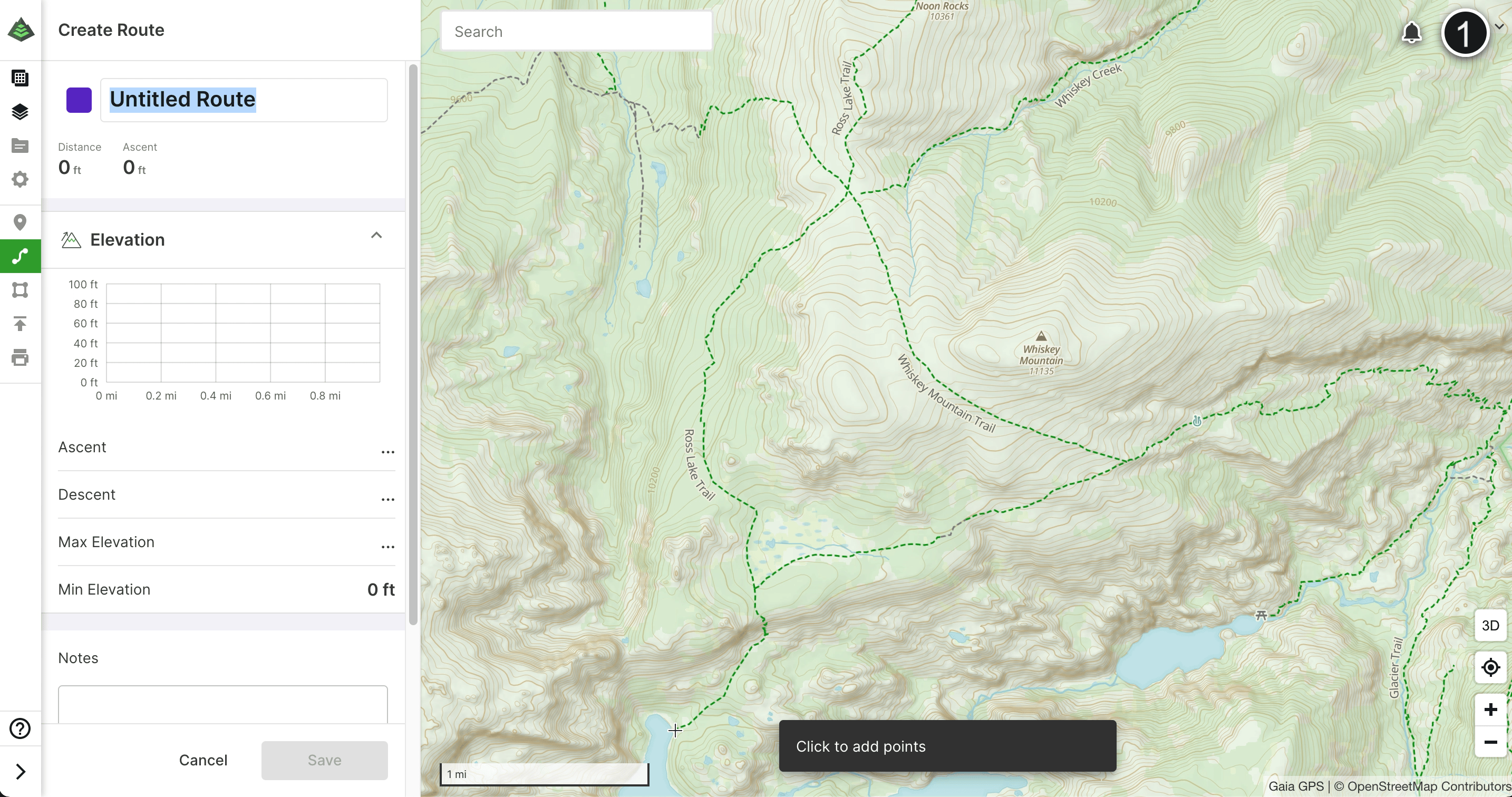

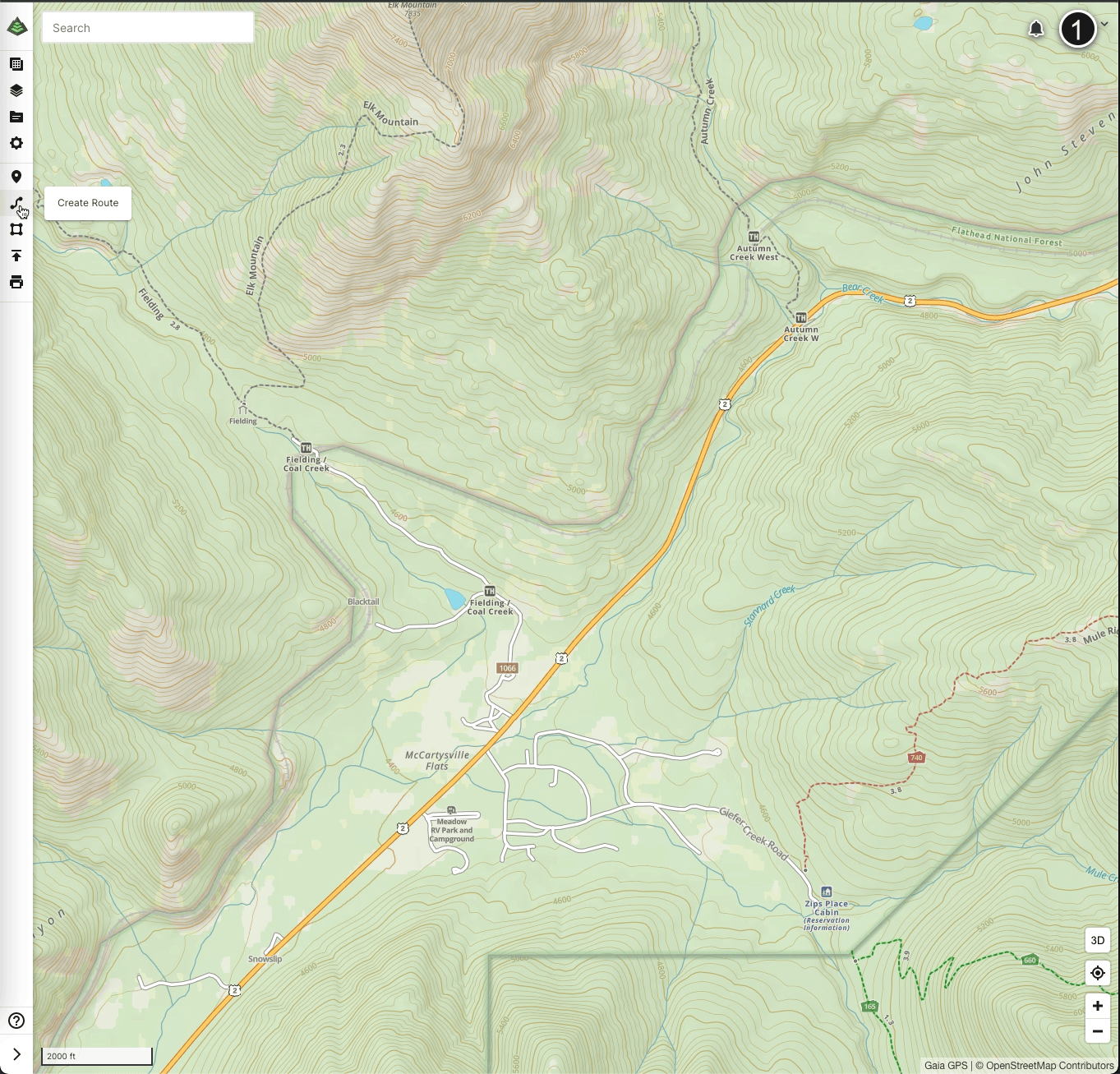

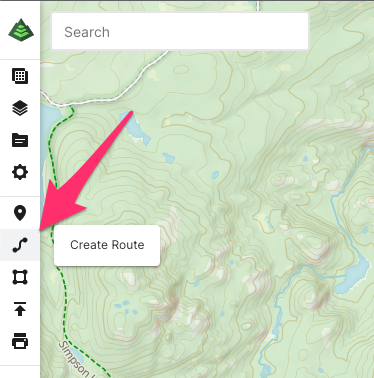

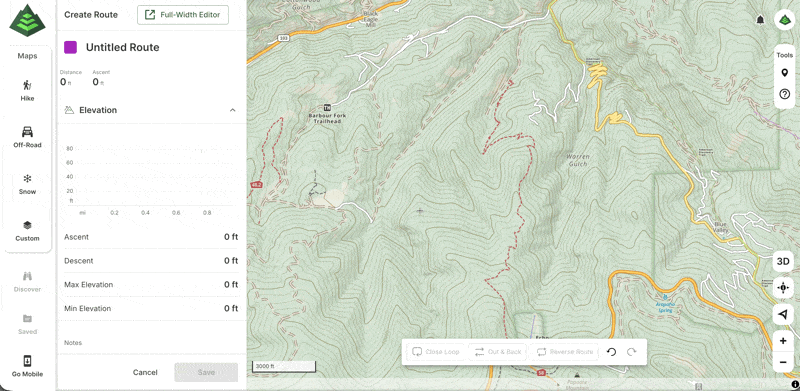

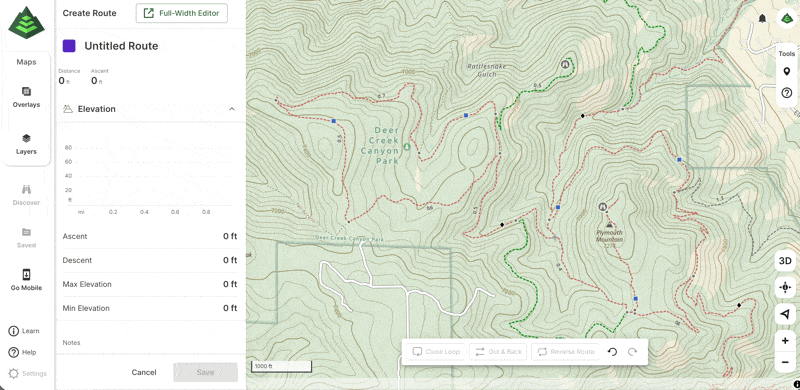

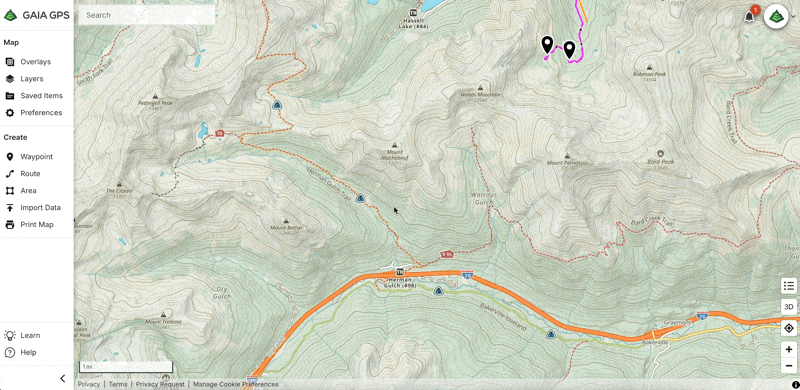

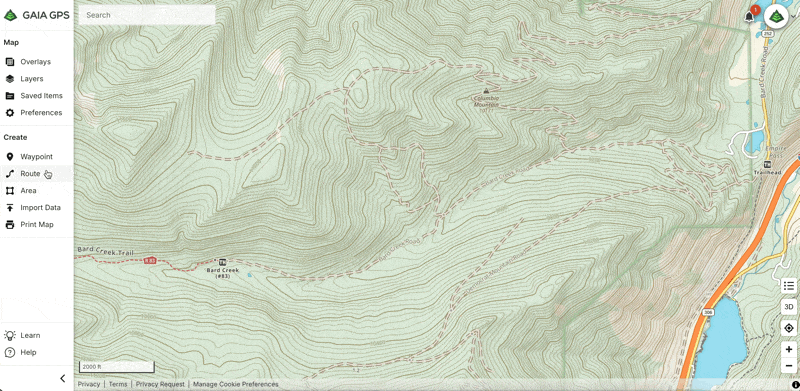

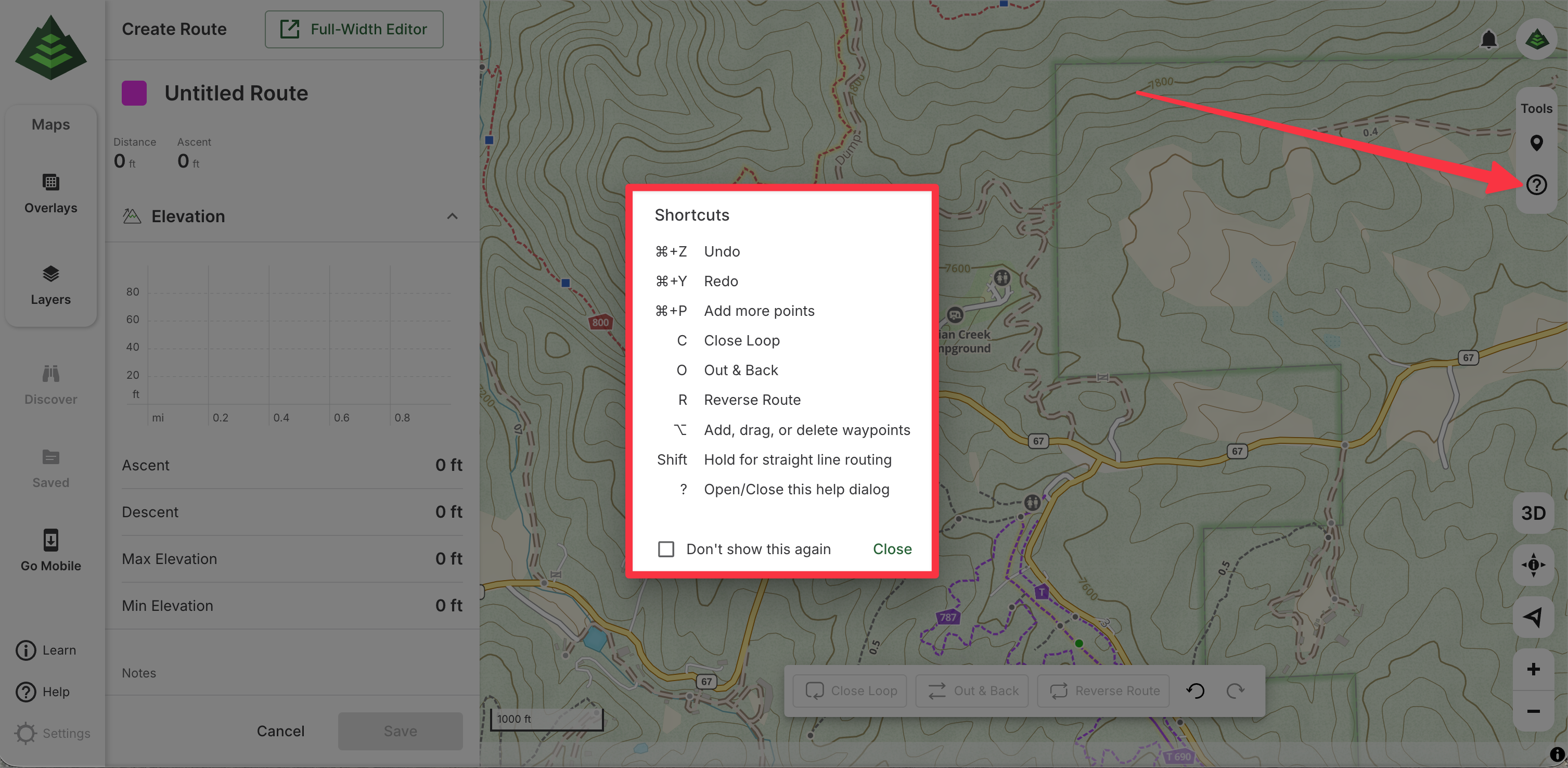

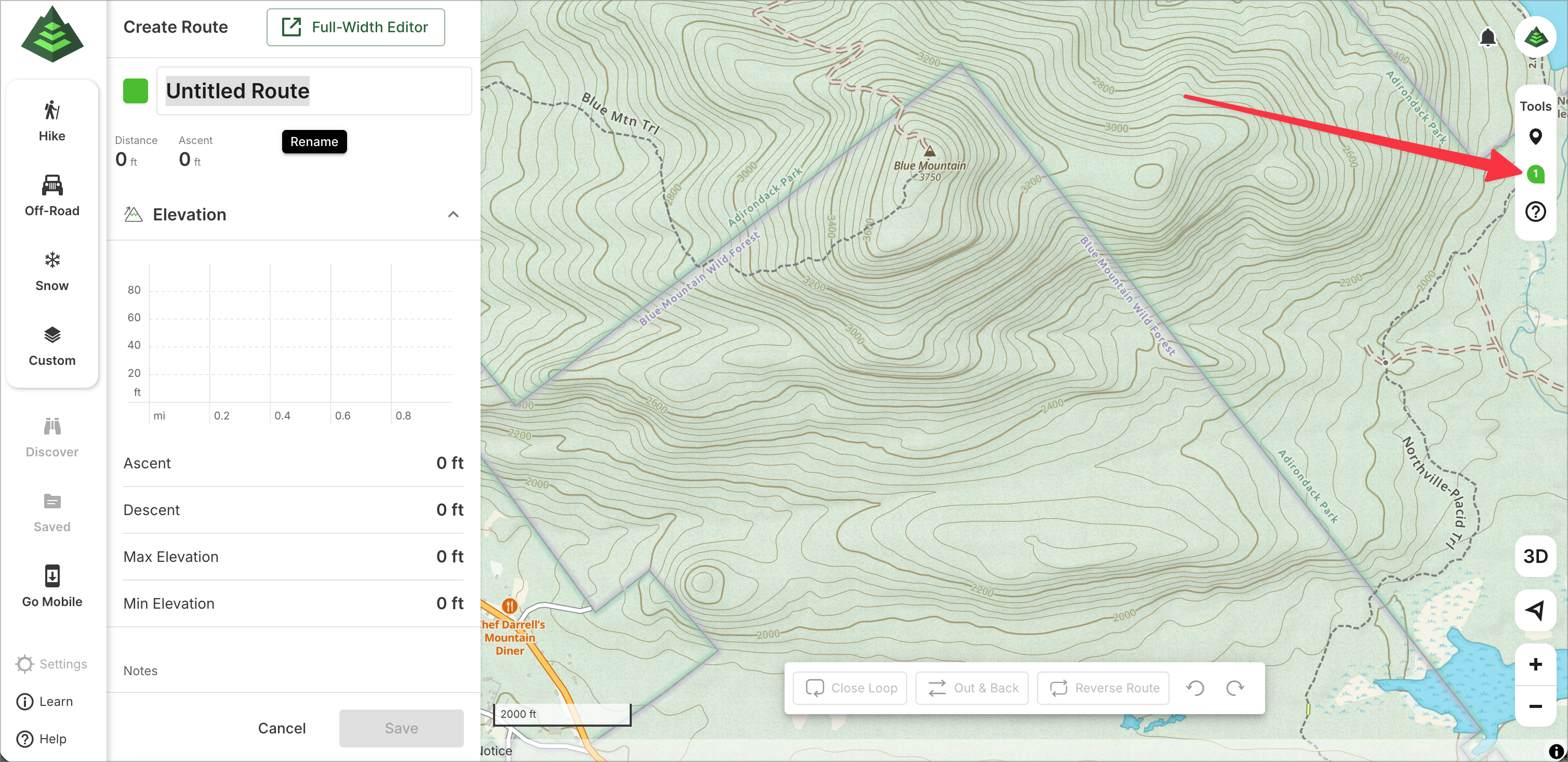

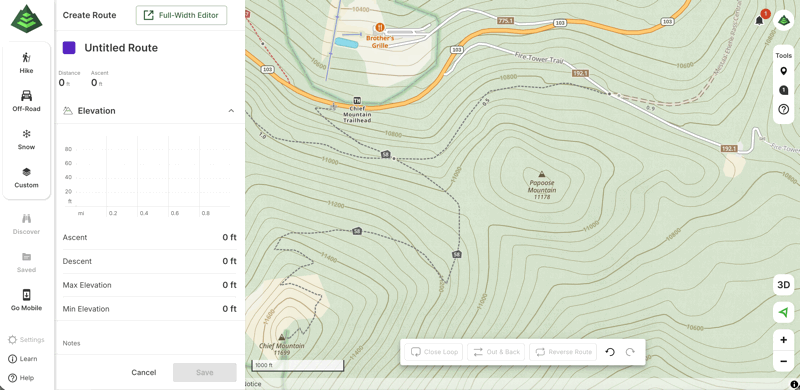

3. Click the Create Route icon.

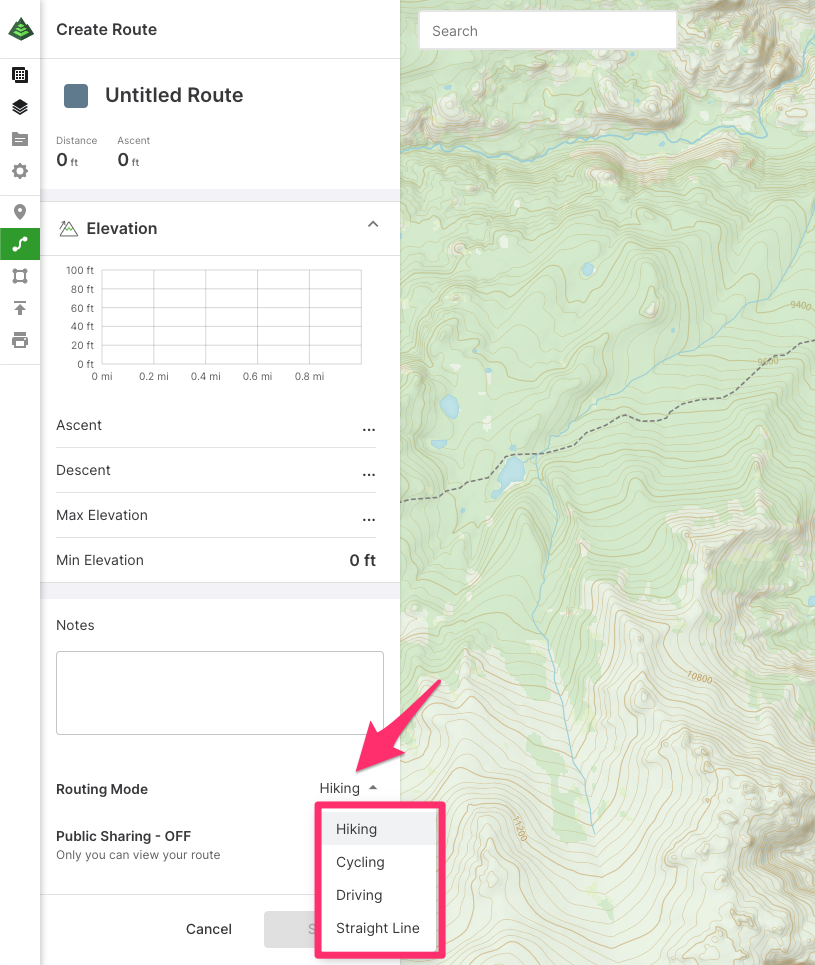

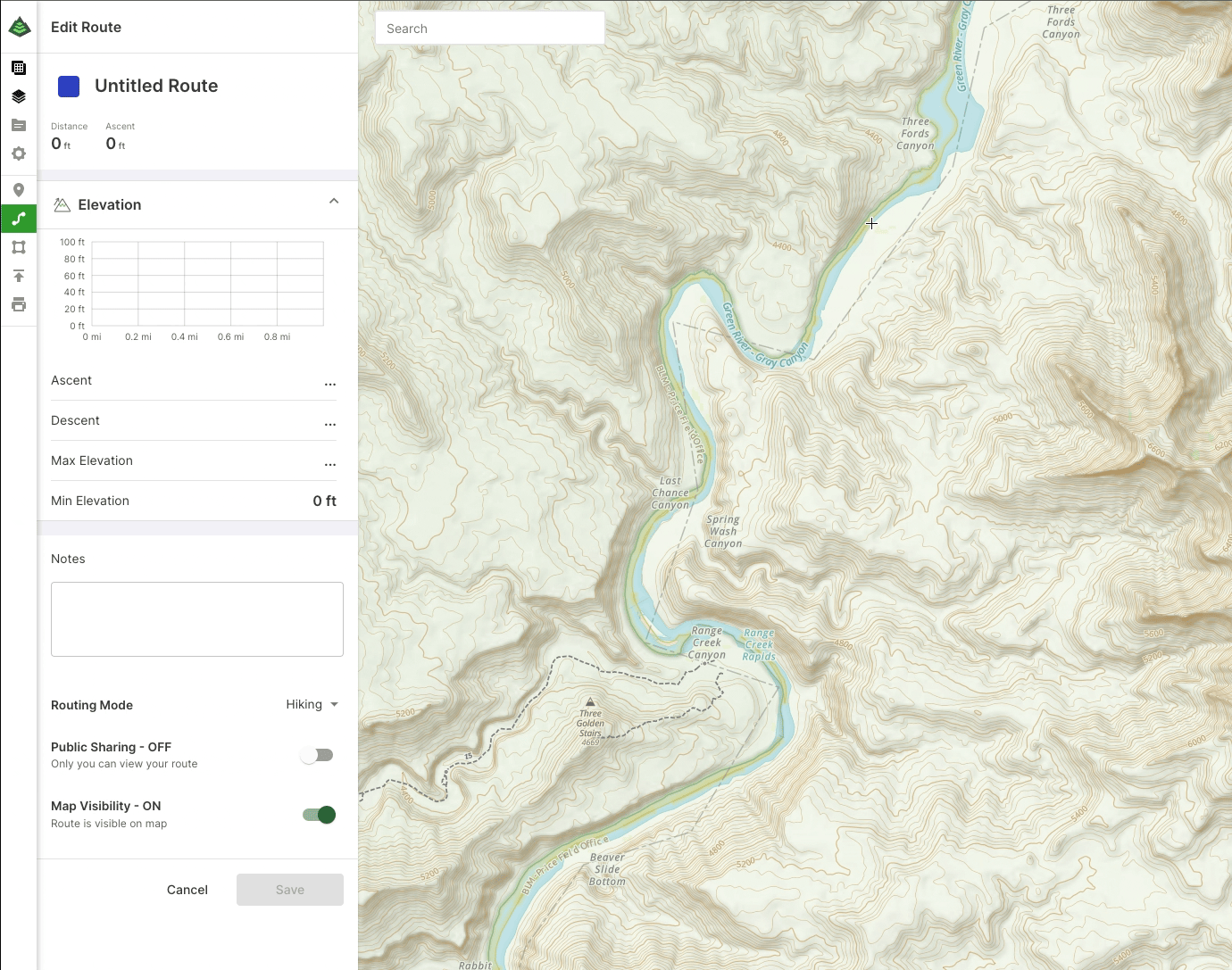

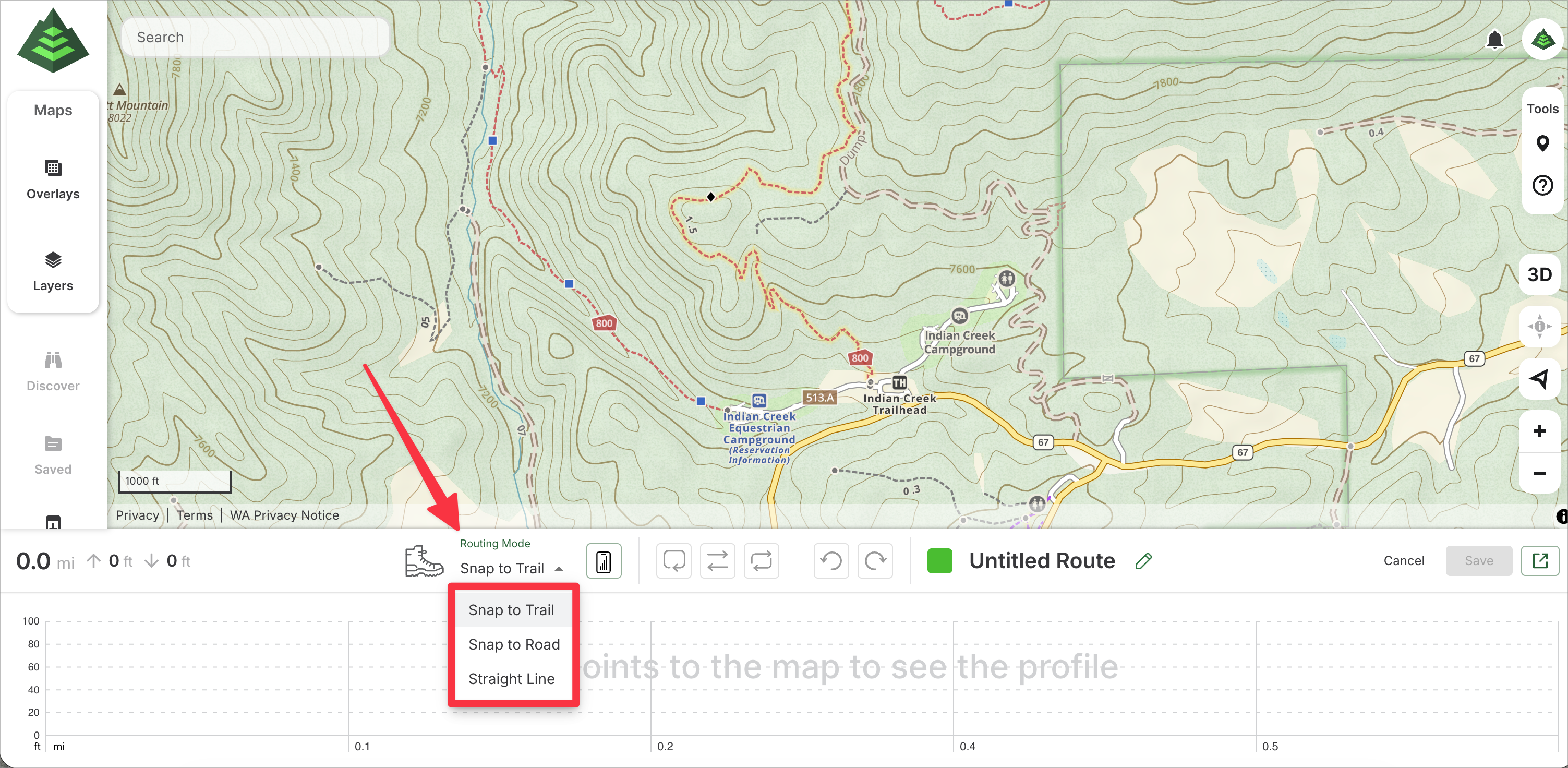

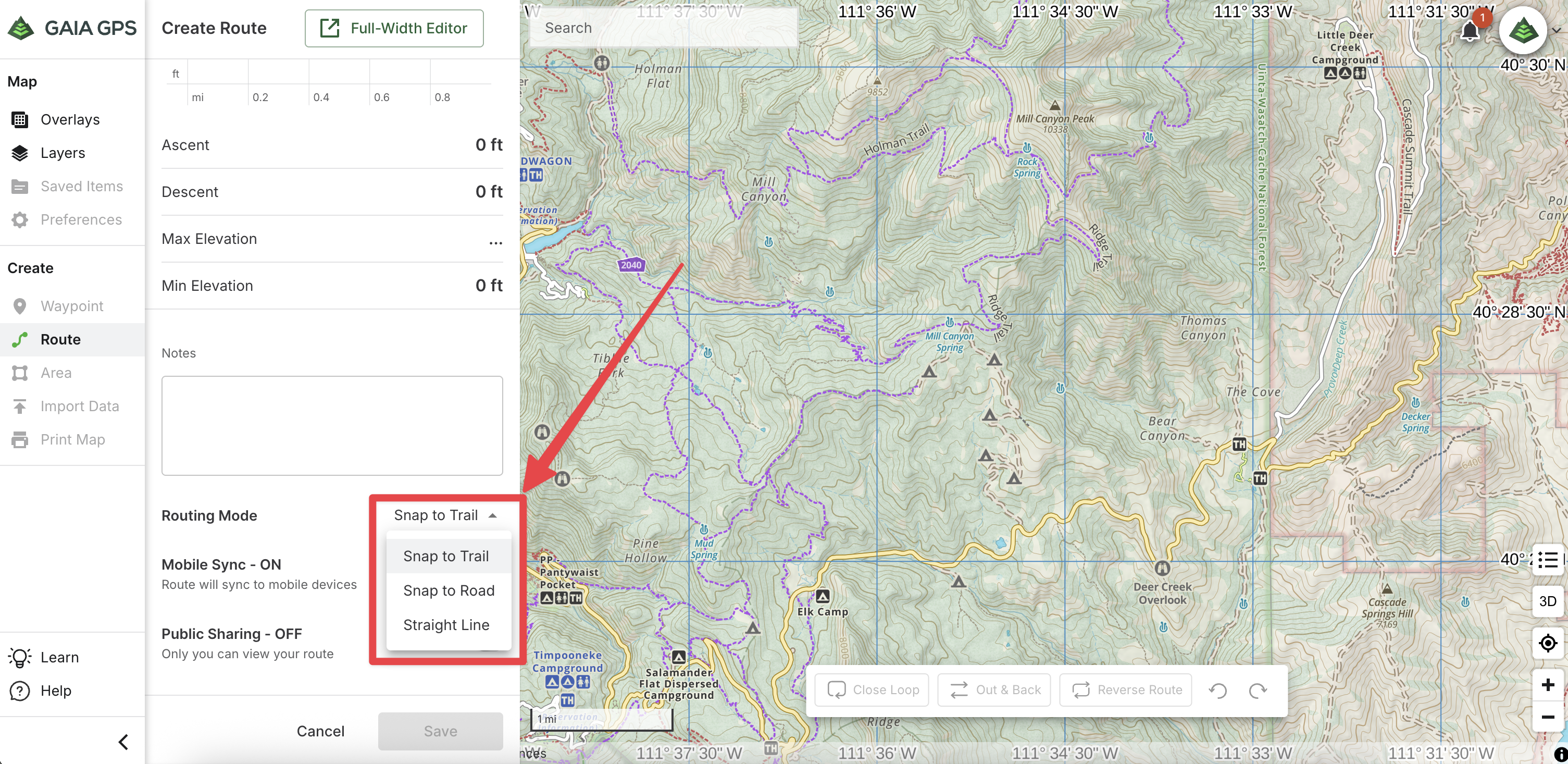

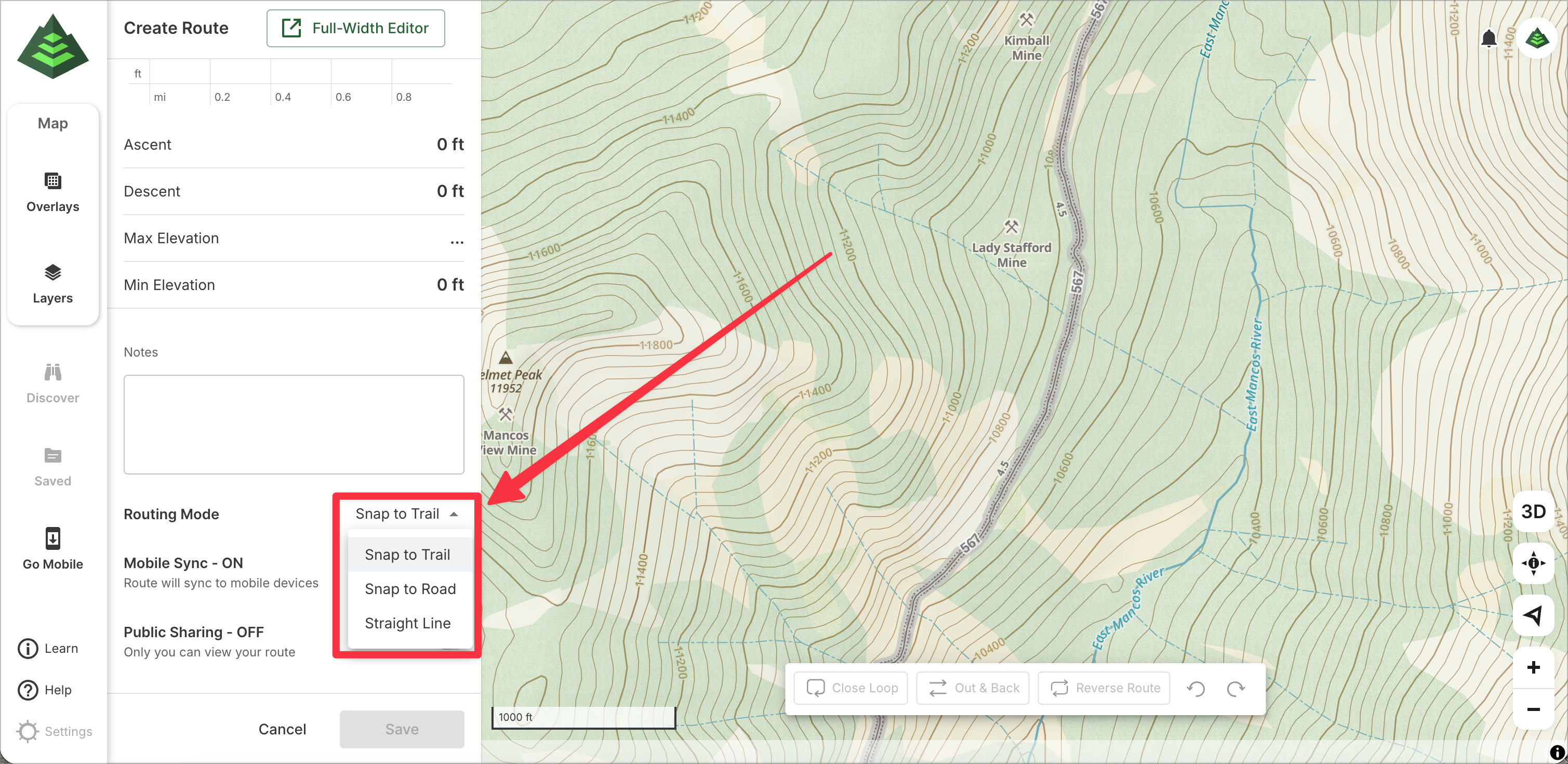

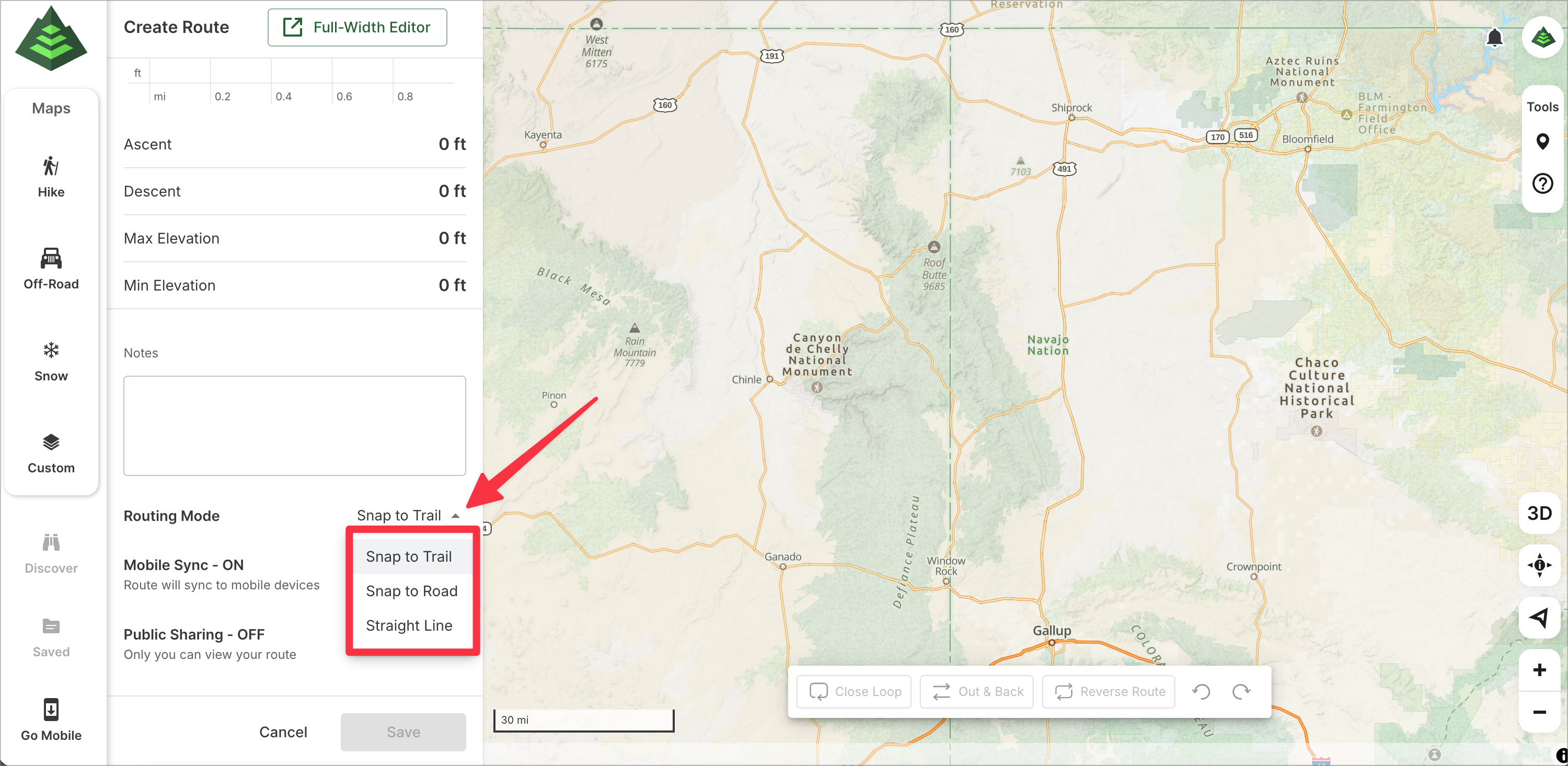

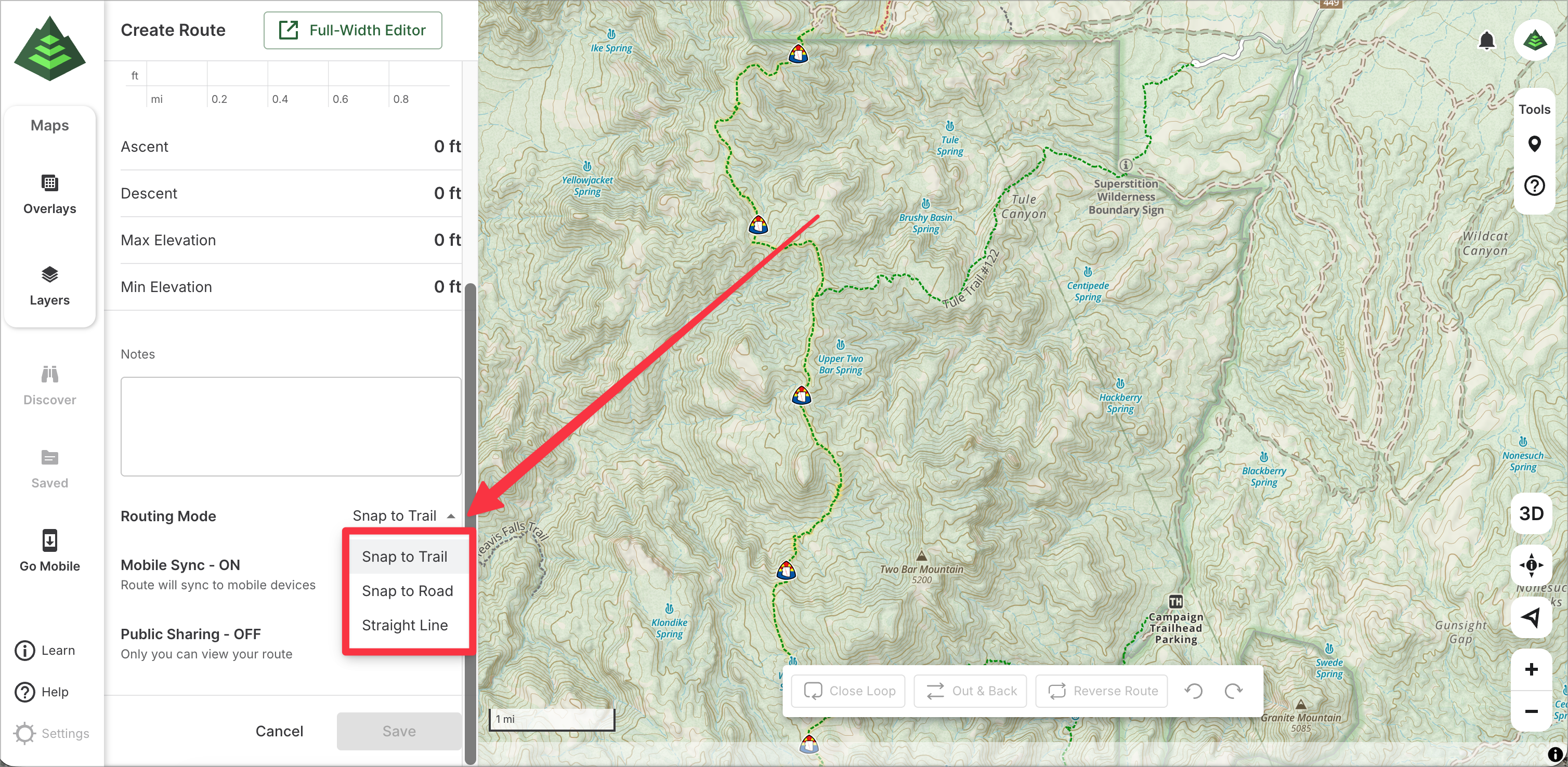

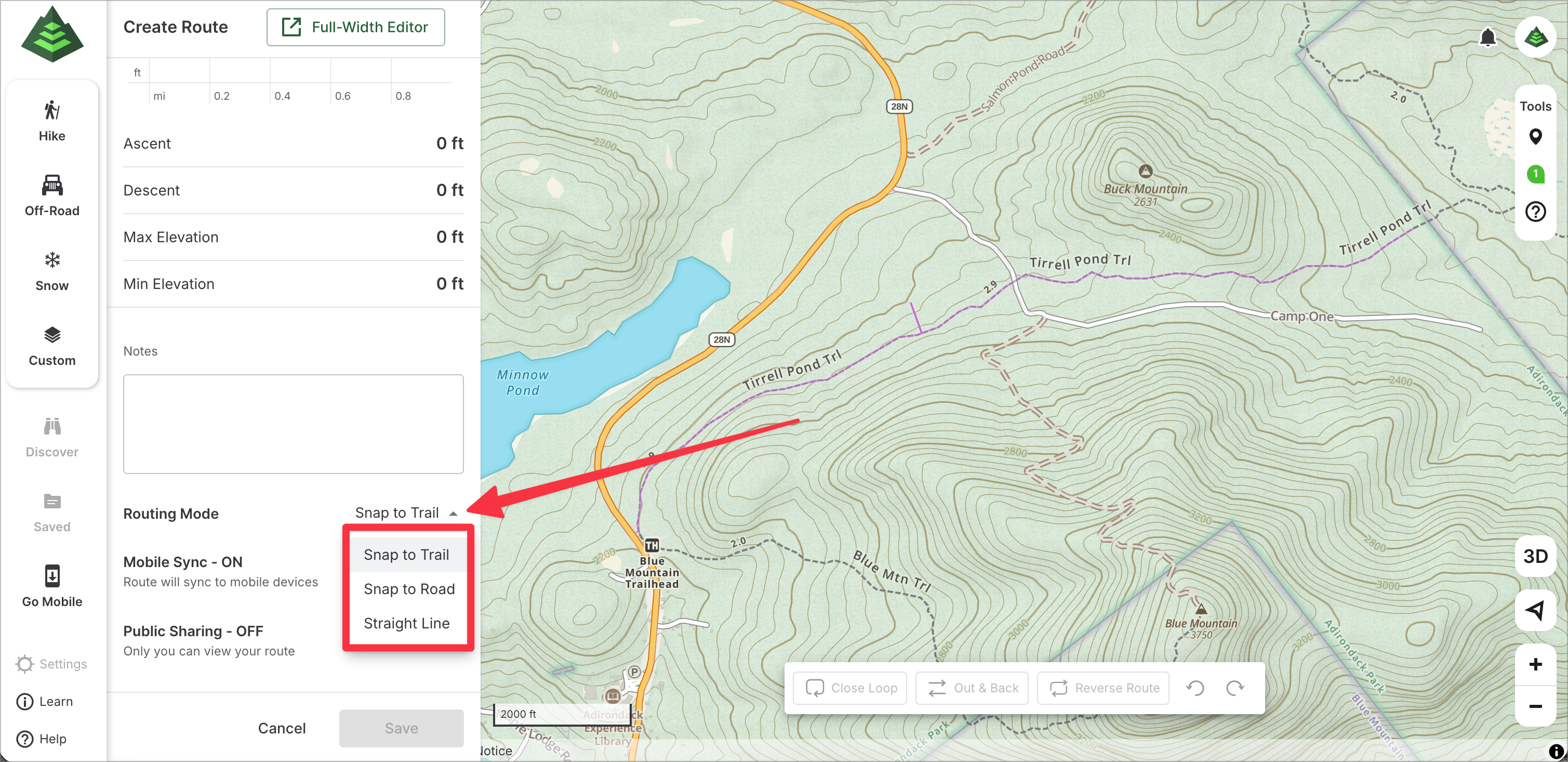

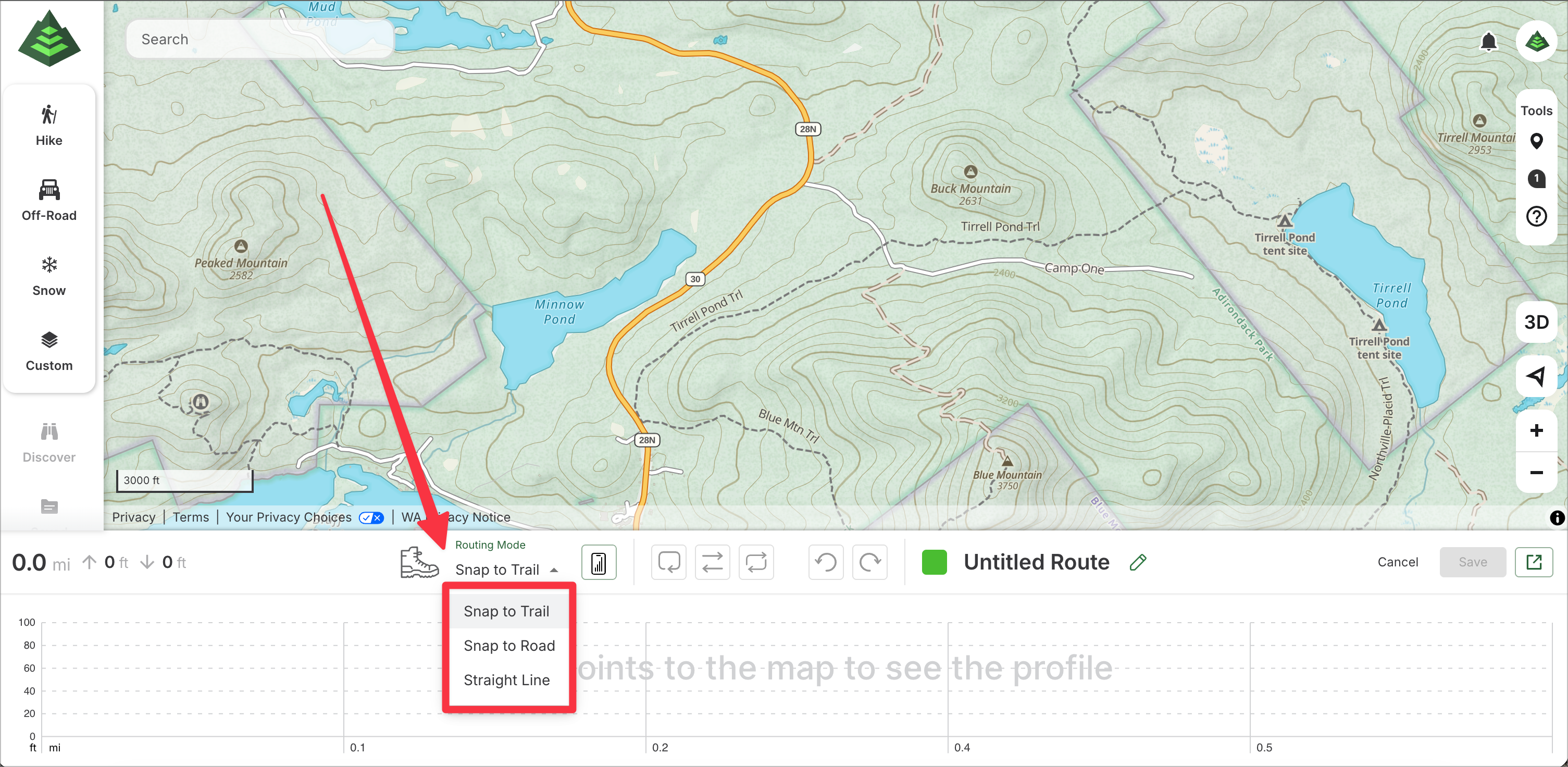

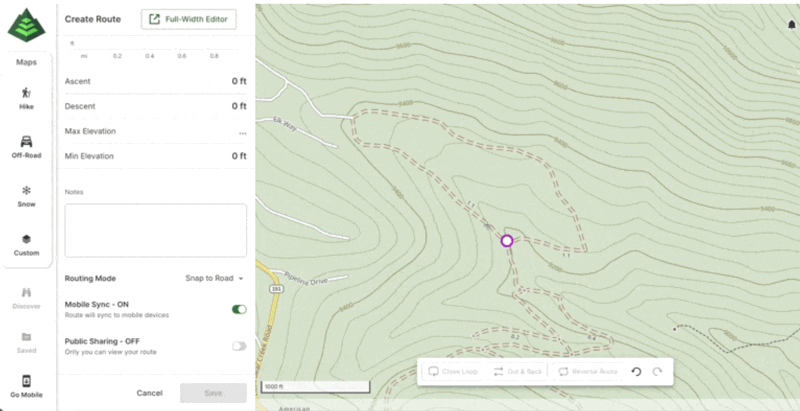

4. Scroll down and click the Routing Mode dropdown menu to change the route type.
- Select either Hiking, Cycling, and Driving to snap to the nearest trails or roads. (Snap-to-Trail notes)
- Select Straight line to manually draw line-segmented routes. (Straight-Line notes).
Note: If you want to combine snap-to-trail and straight-line routing, choose Hiking, Cycling, or Driving. The routing tool will default to straight line when no trails or roads are nearby.

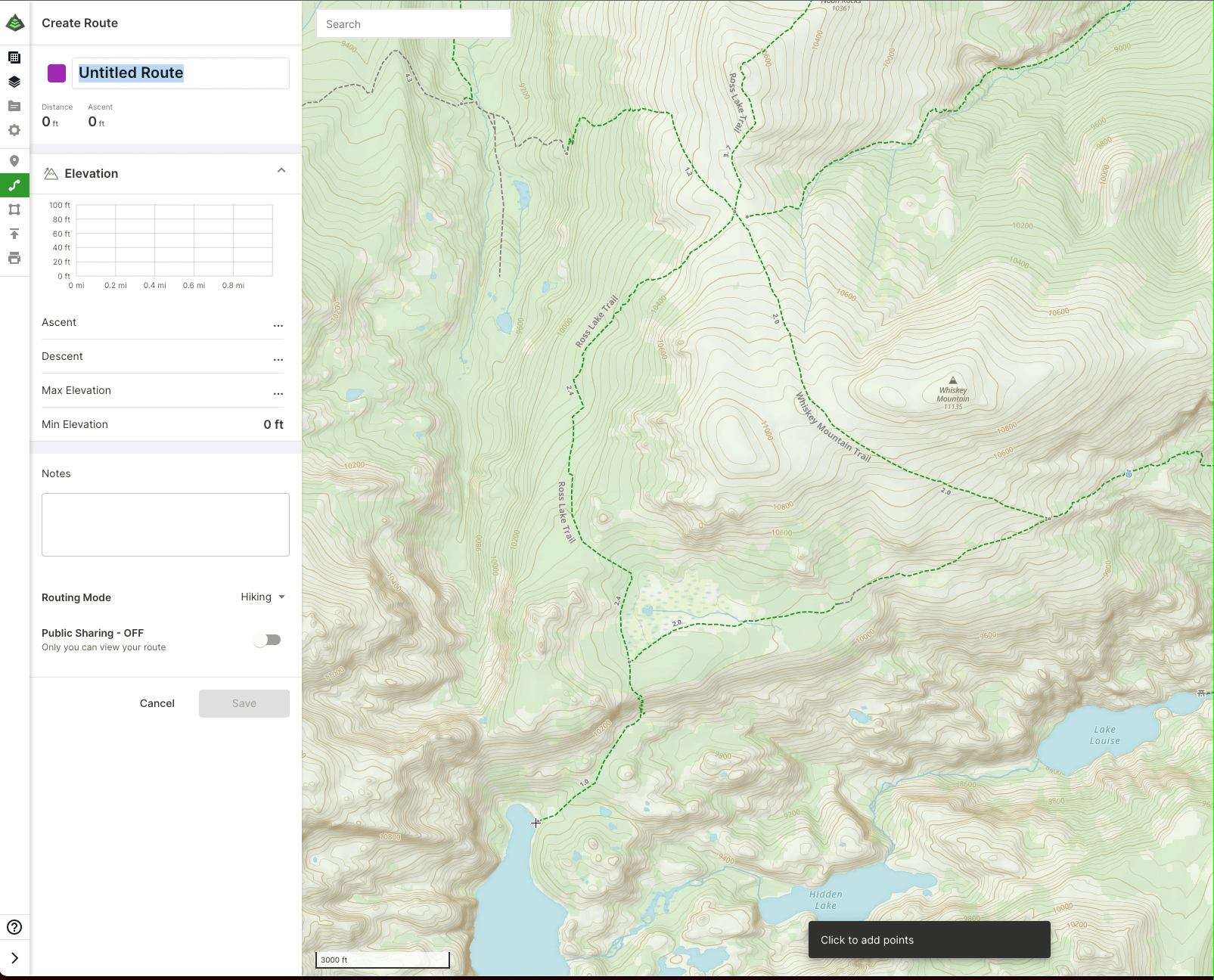

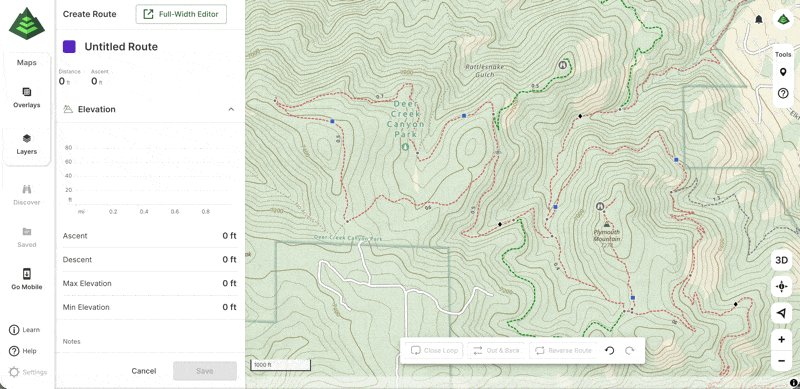

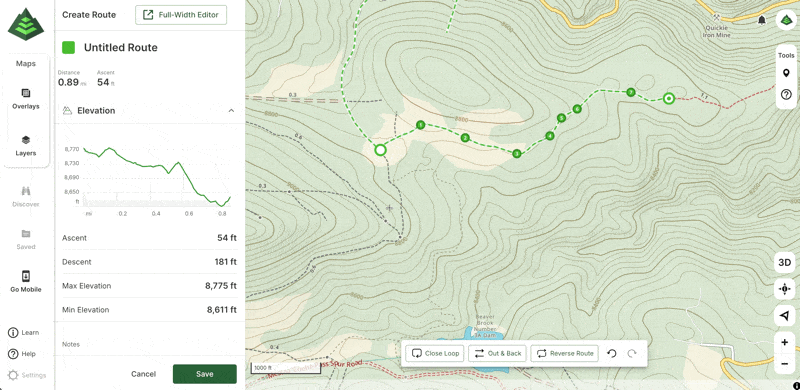

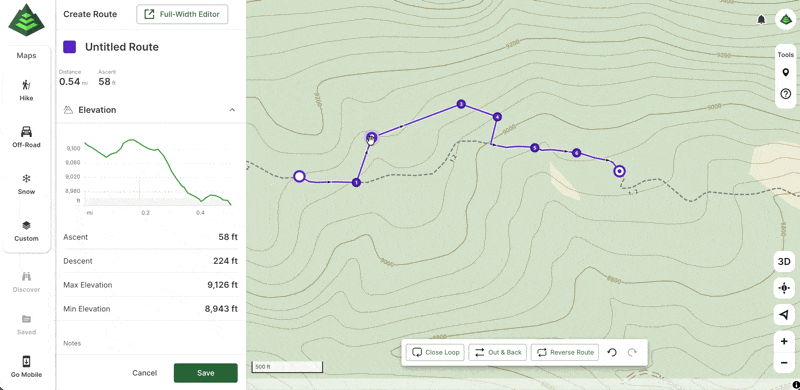

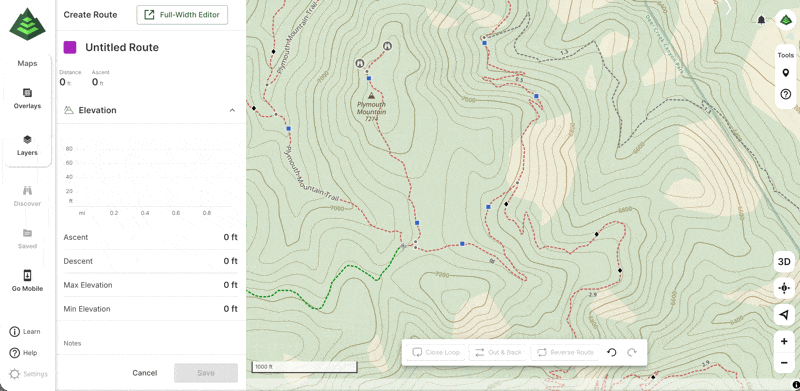

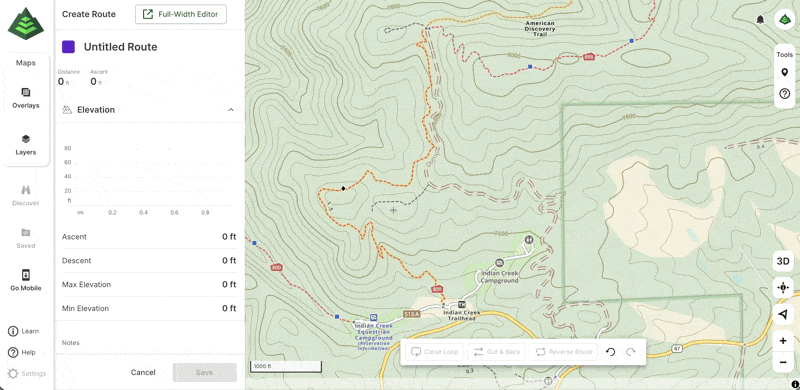

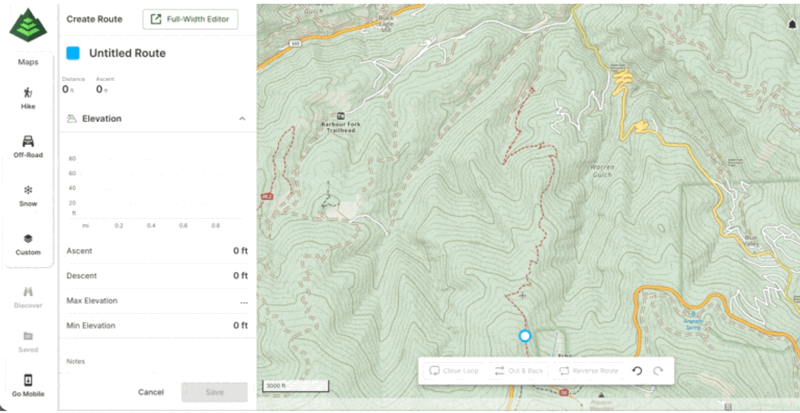

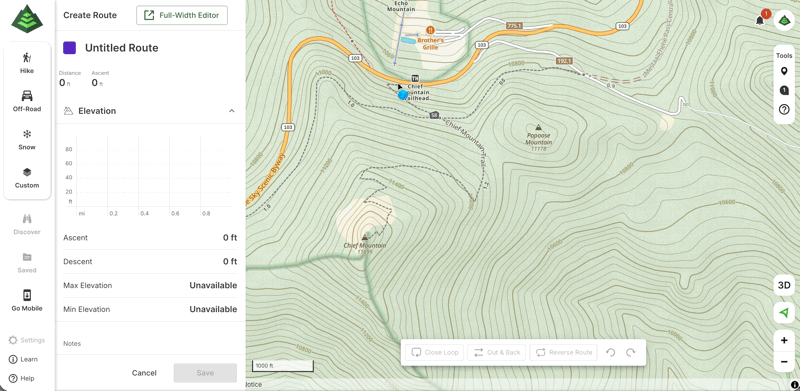

5. Click the map to create the starting point for your route.

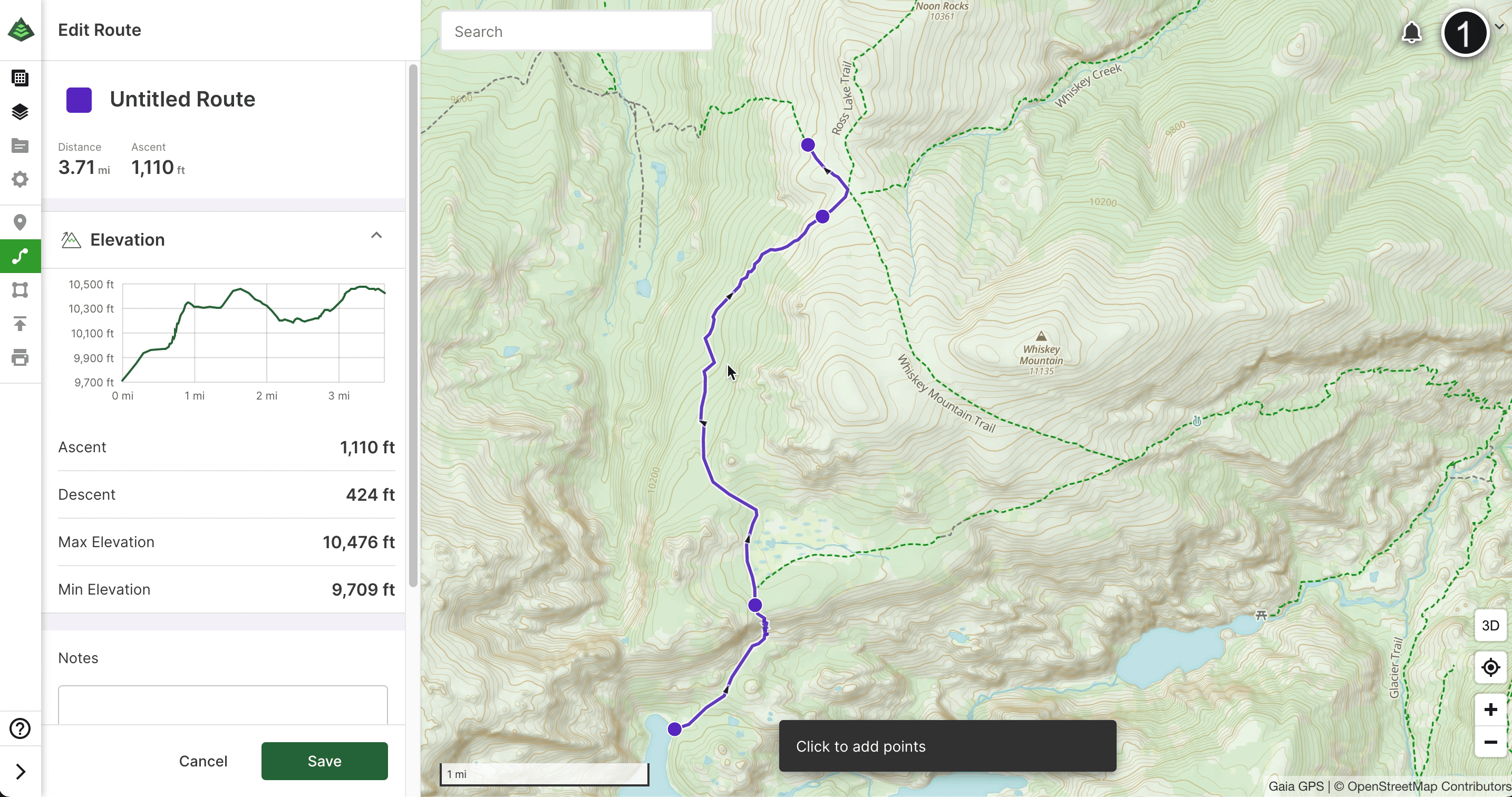

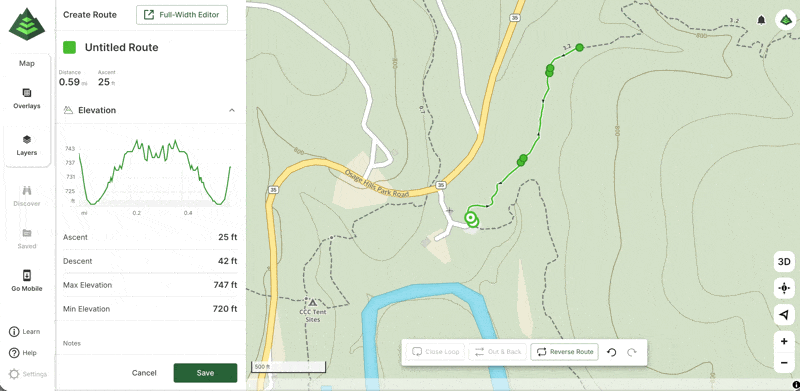

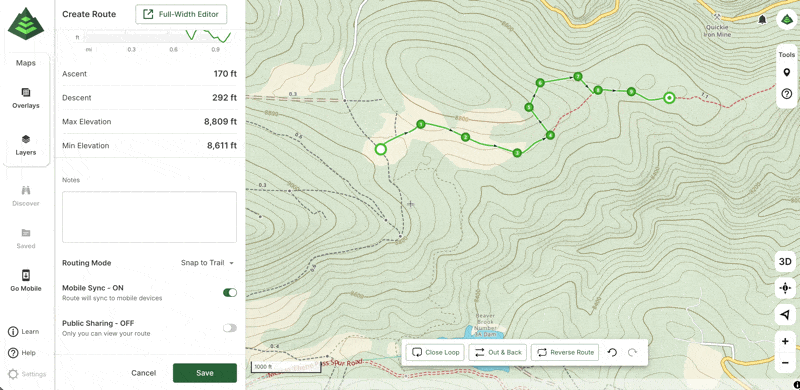

6. Click the map again to add points along your route. Add as many points as you'd like.
- Click, hold, and drag the map to pan around.
- Scroll to zoom the map in and out.

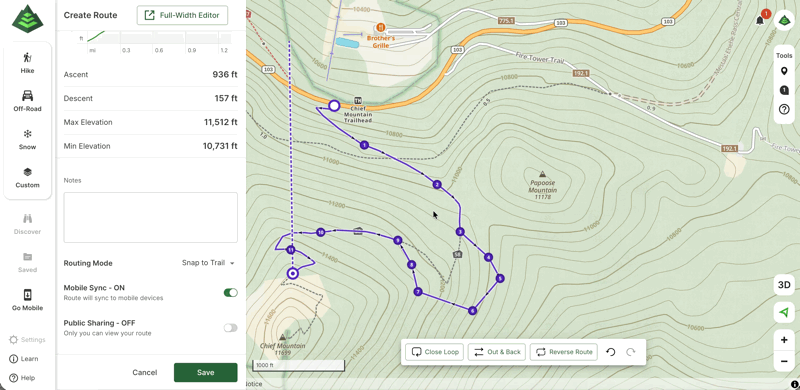

7. If needed, adjust the route line and delete route points:
- Click, hold, and drag the route line or a route point to move it to a new location.

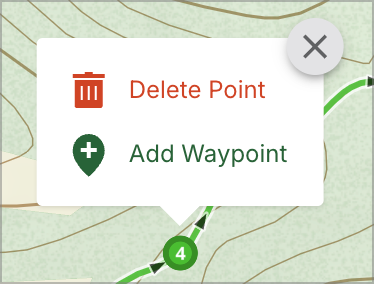

- Click a point, then click "Delete Point" (red trash can) to delete the point.

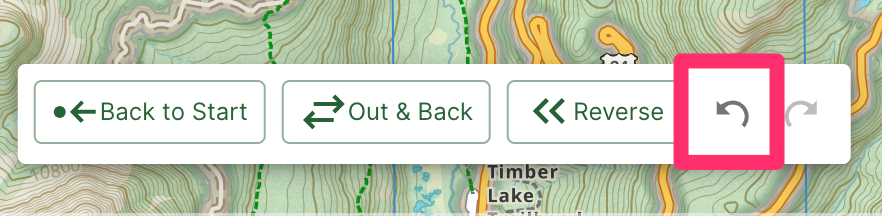

8. Click Undo to remove the last segment or edit.

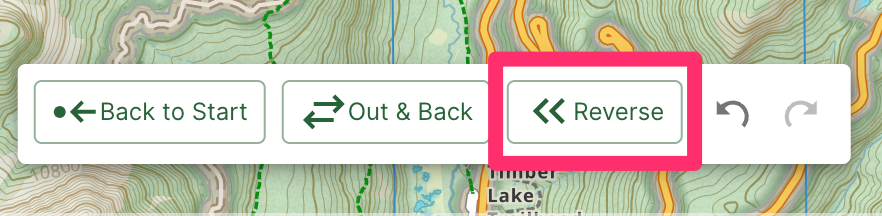

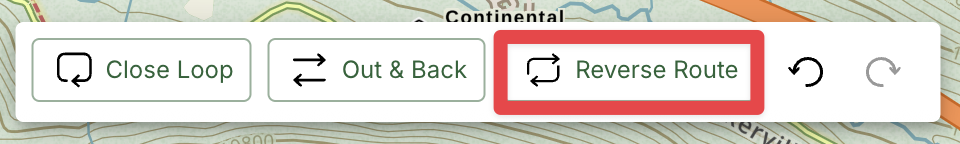

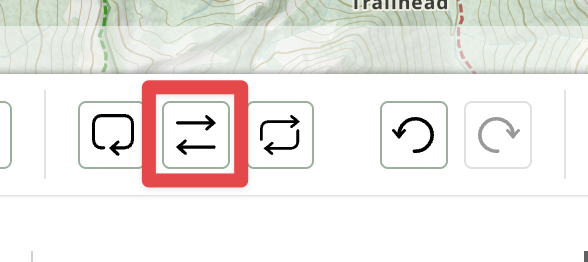

9. Click Reverse to reverse the entire route. The direction arrows on the route line will change and the elevation profile will update.
10. Click Back to Start to navigate the route on the quickest route back to the start

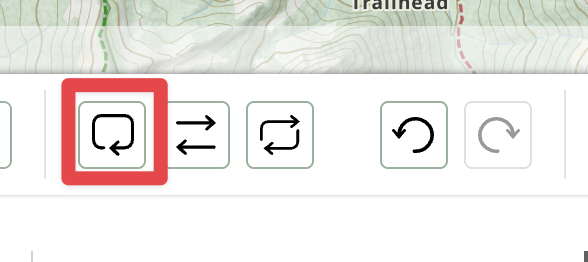

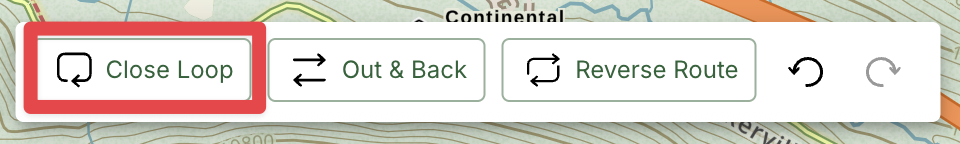

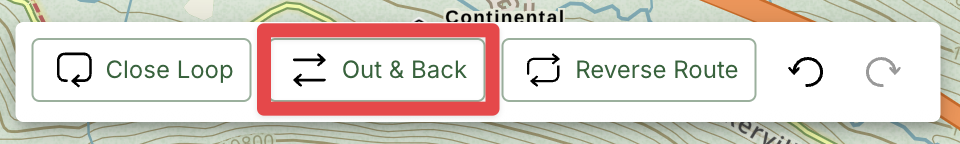

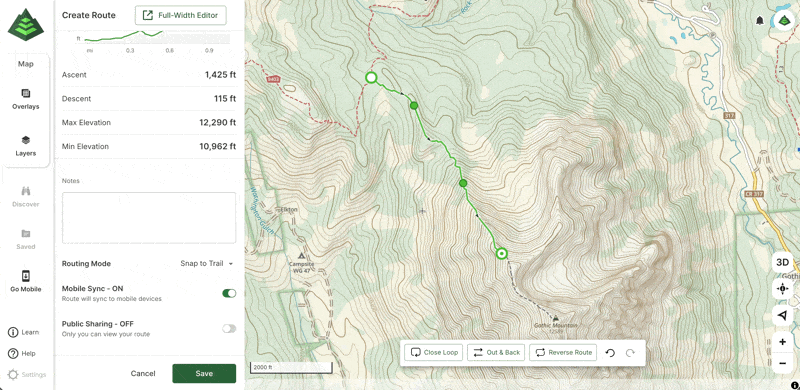

11. Click Out and Back if you want your route to turn around at the ending point and navigate back to the start of the route

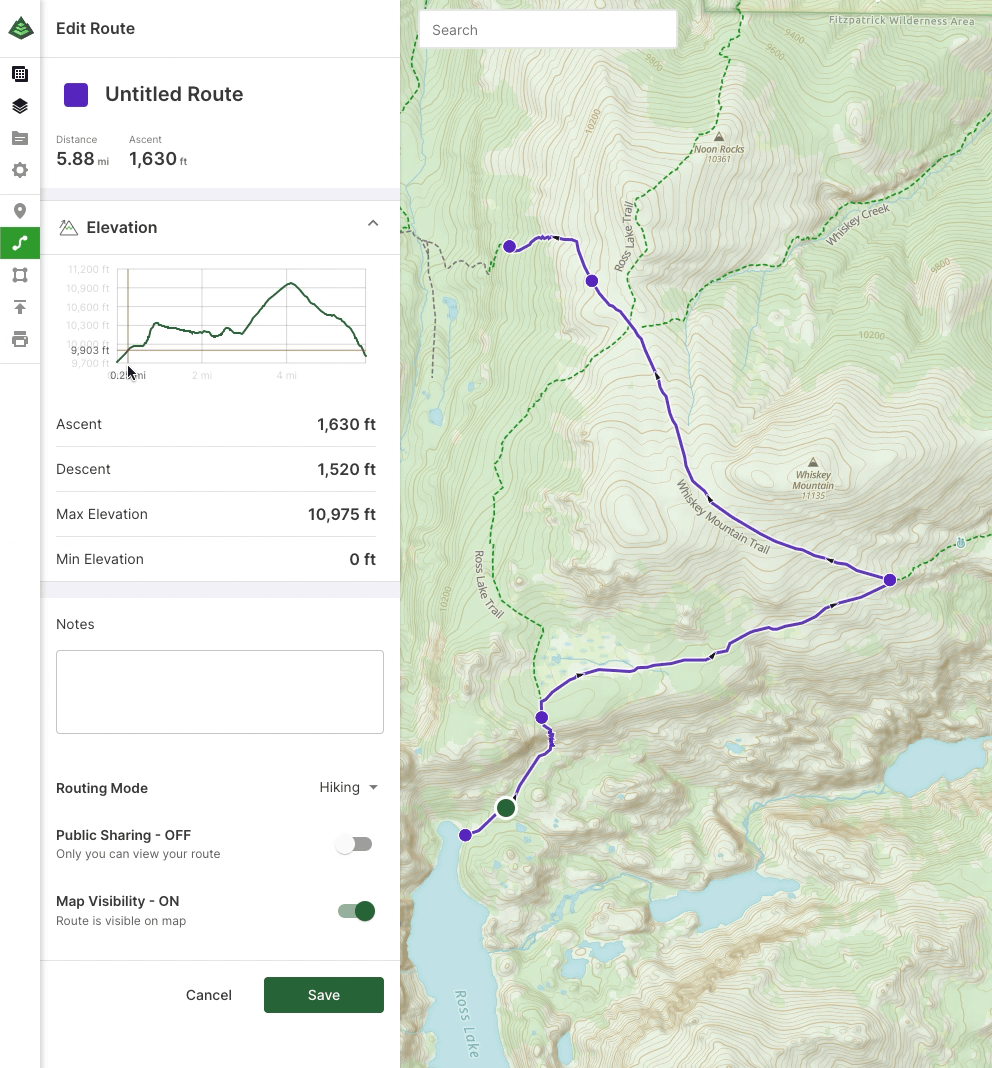

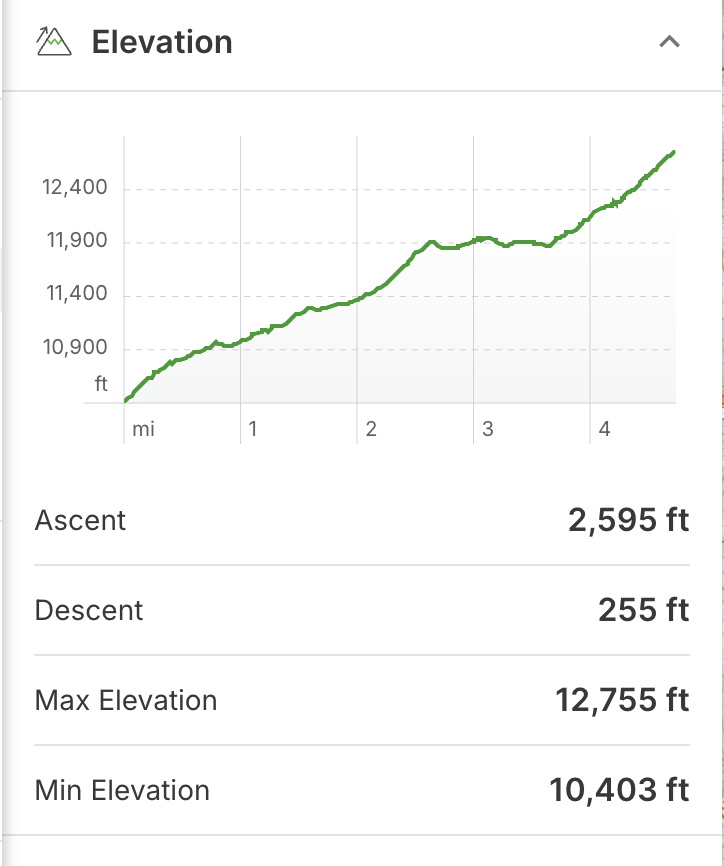

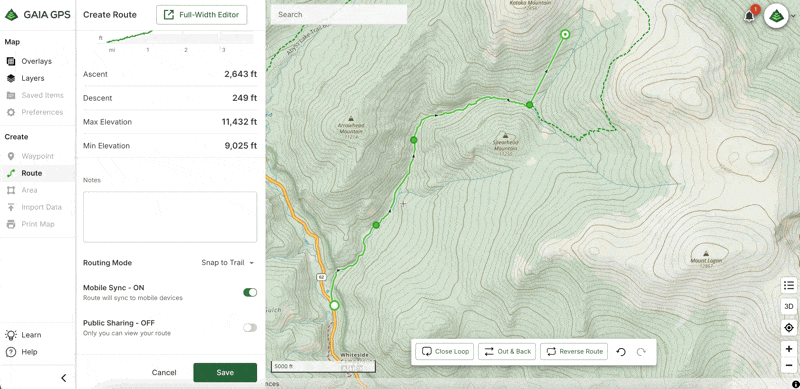

12. View route distance and cumulative ascent/descent in the sidebar.

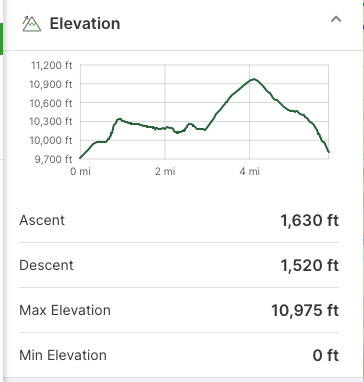

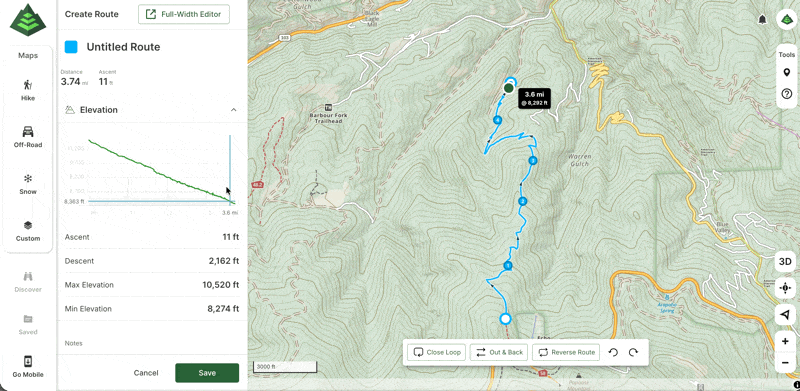

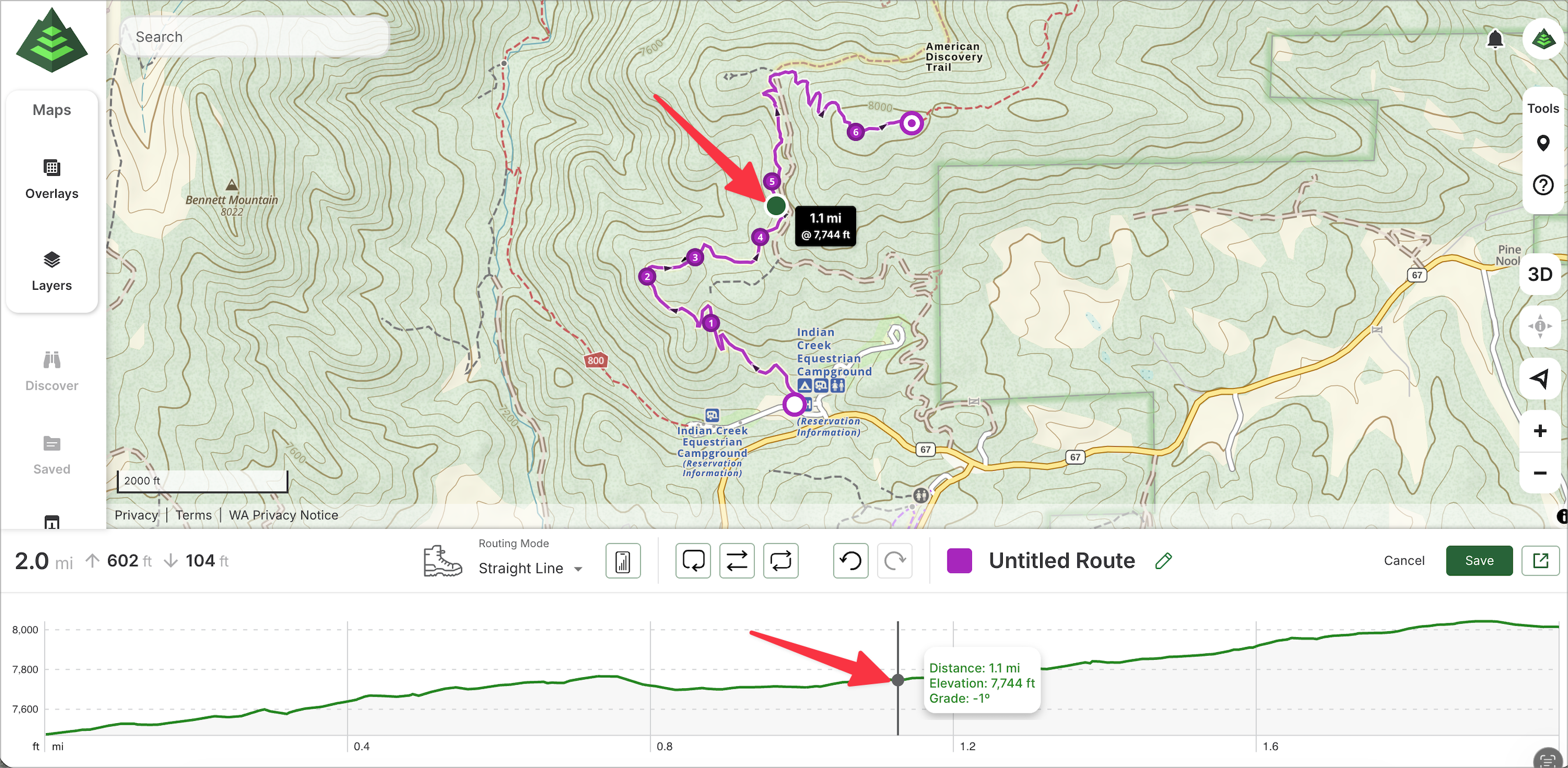

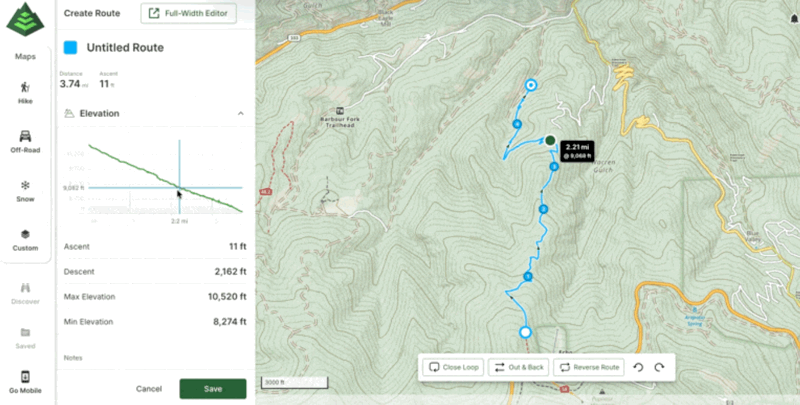

13. Hover over the interactive elevation profile to see corresponding locations along your route.

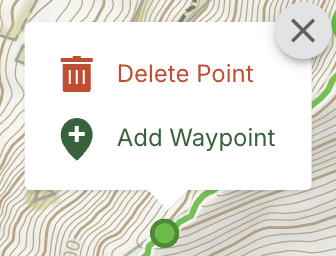

14. Convert any route point to a waypoint:
- Click a point, then click Add Waypoint.

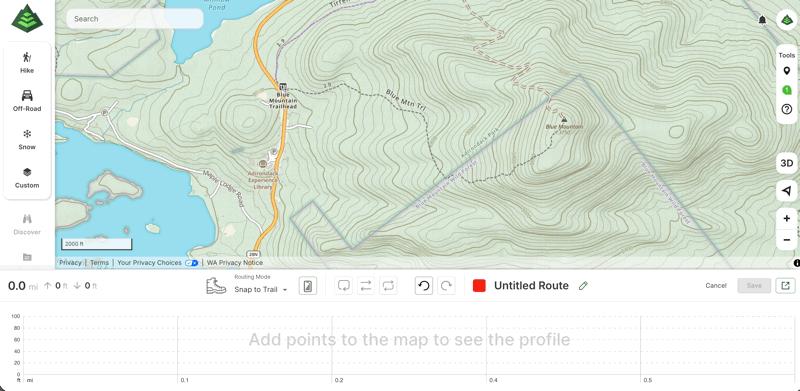

Create a Route With the New Editor
We recently released the New Route Editor on the web. It's the same route planner you love, but with a new full-width layout, so you can plan smarter. The New Route editor works like the Old Route Editor but has a different view. Follow these steps to learn how to use the New Route Editor:
1. Go to www.gaiagps.com/map to view the main map.
2. Search for a place you would like to plan a route.

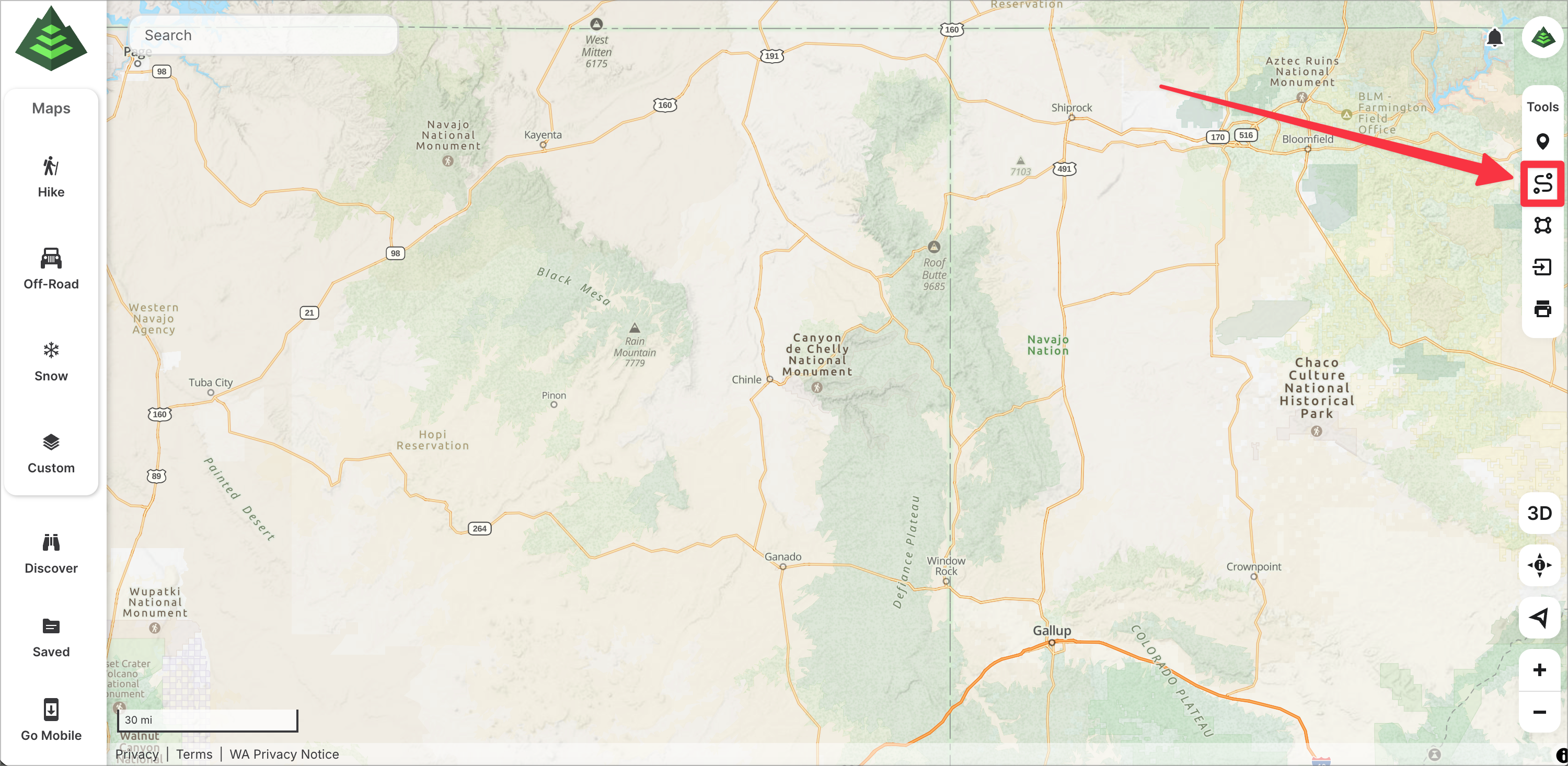

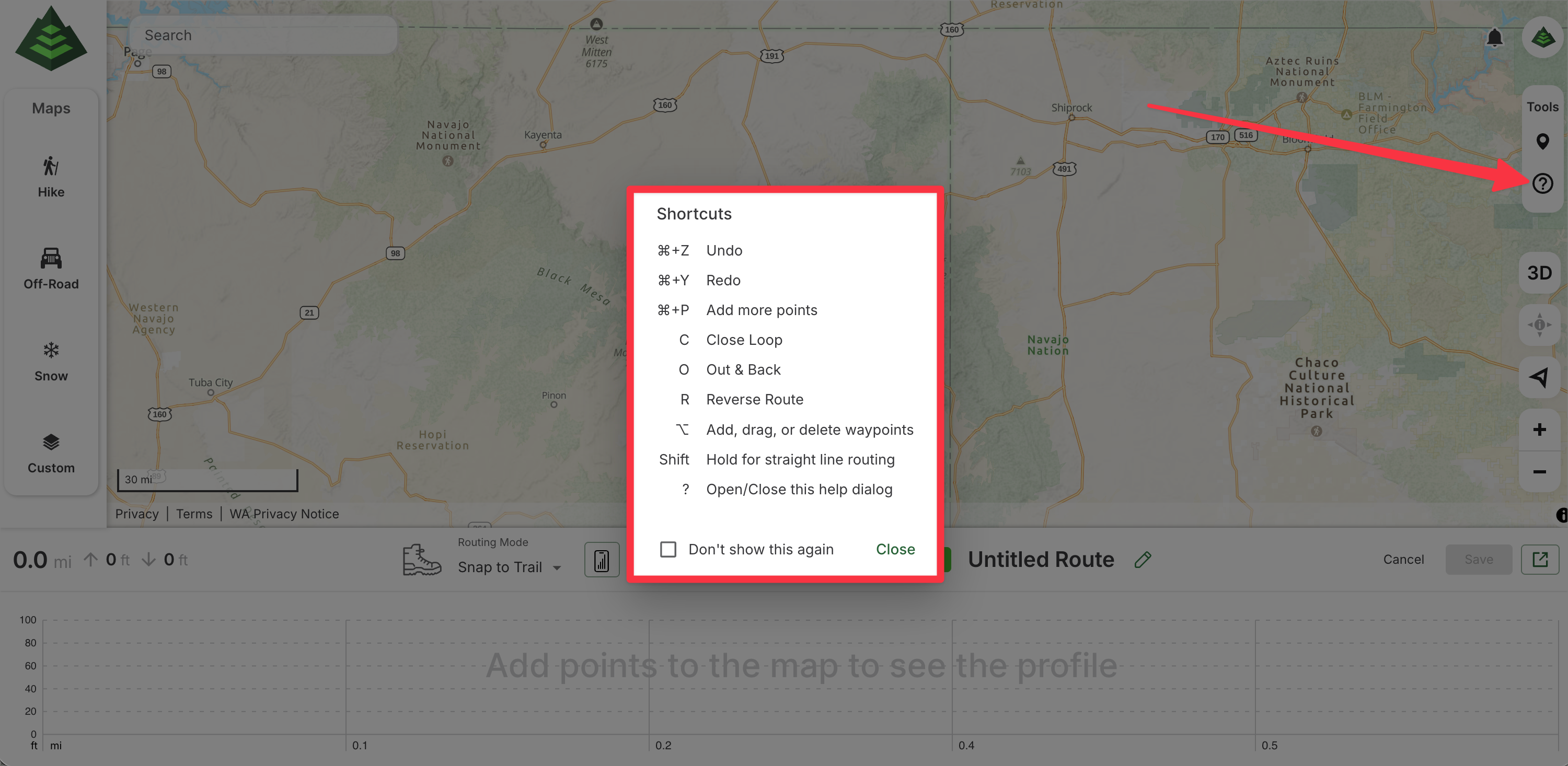

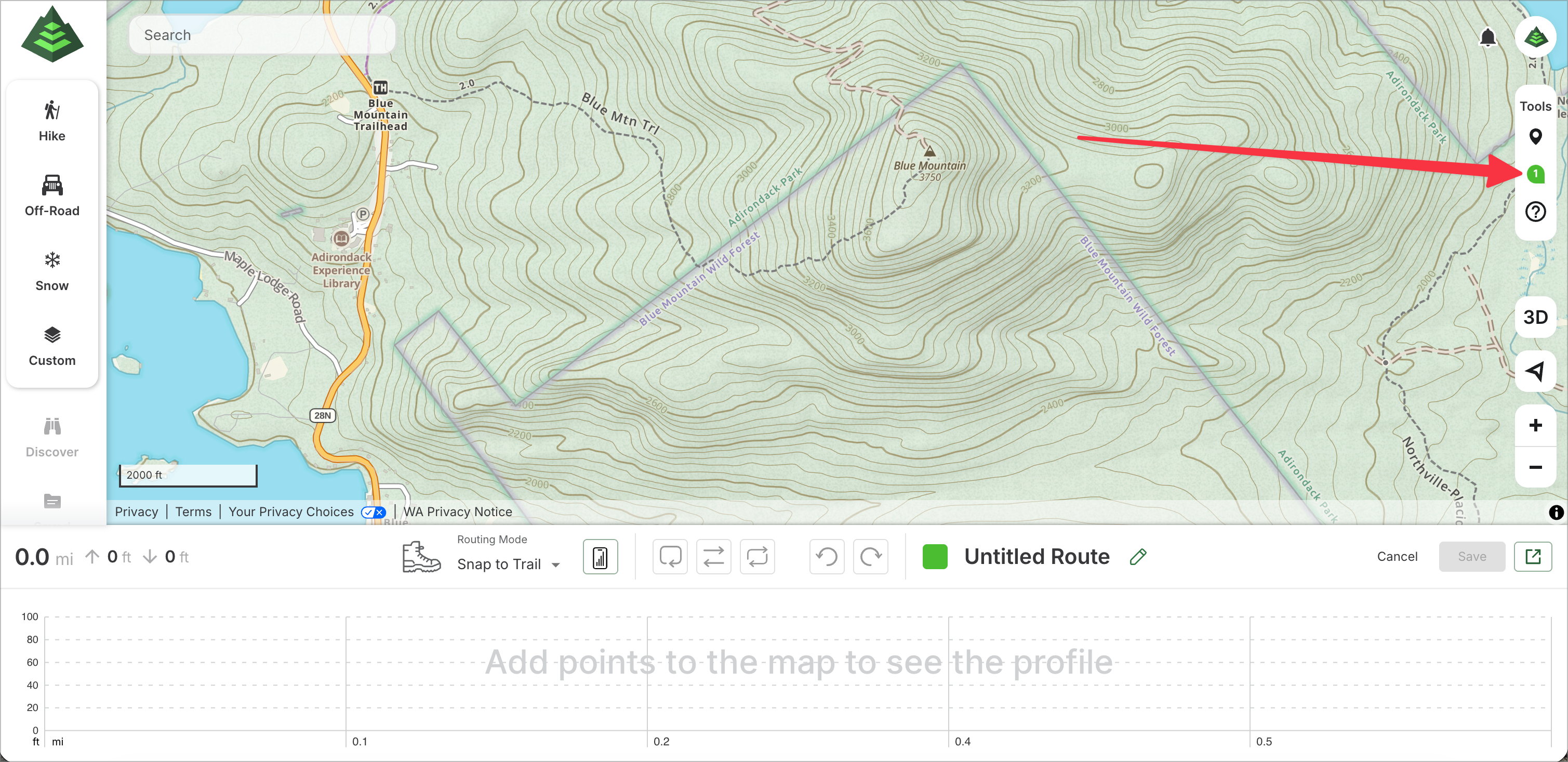

3. Click the Create Route icon.

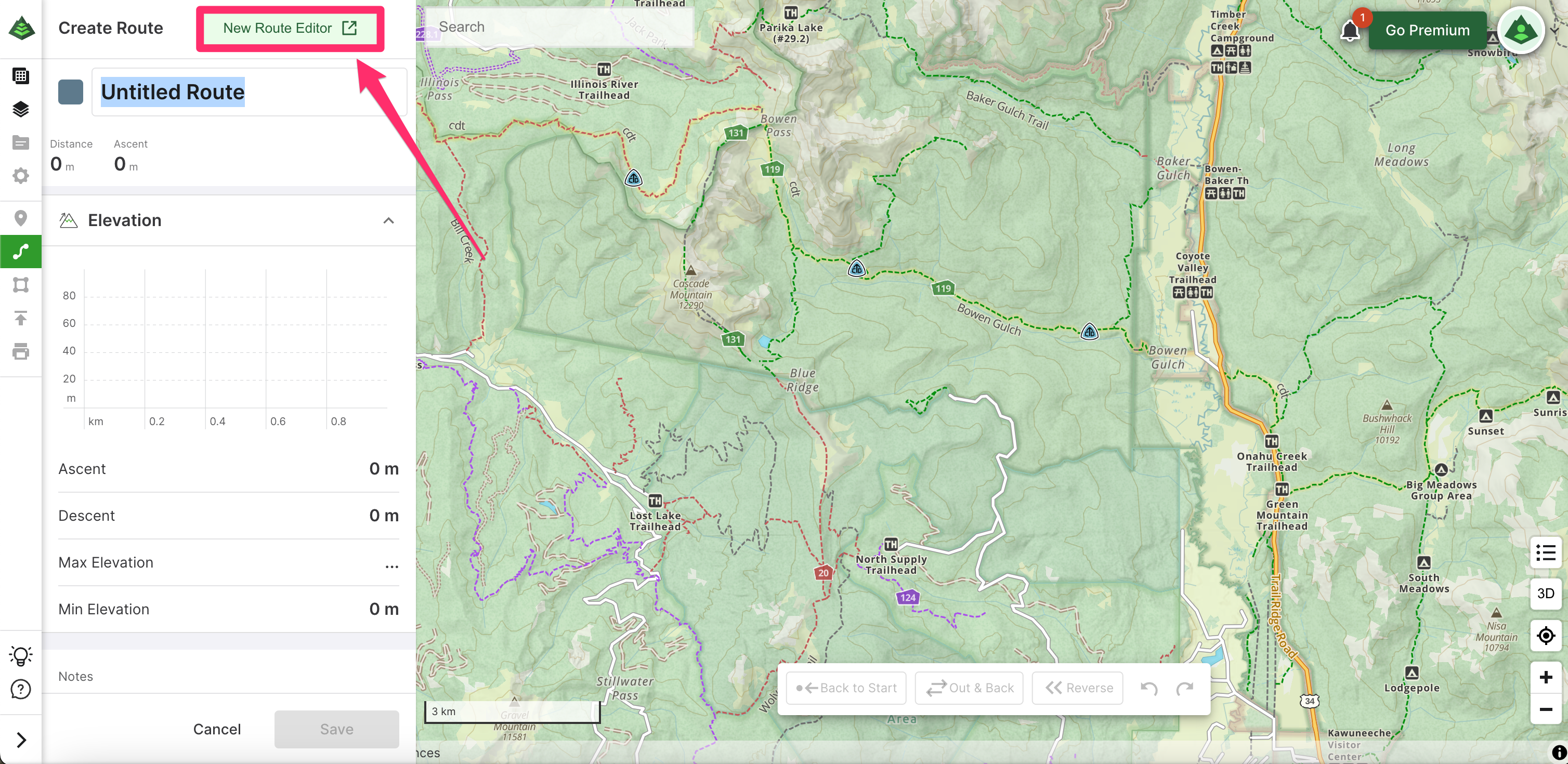

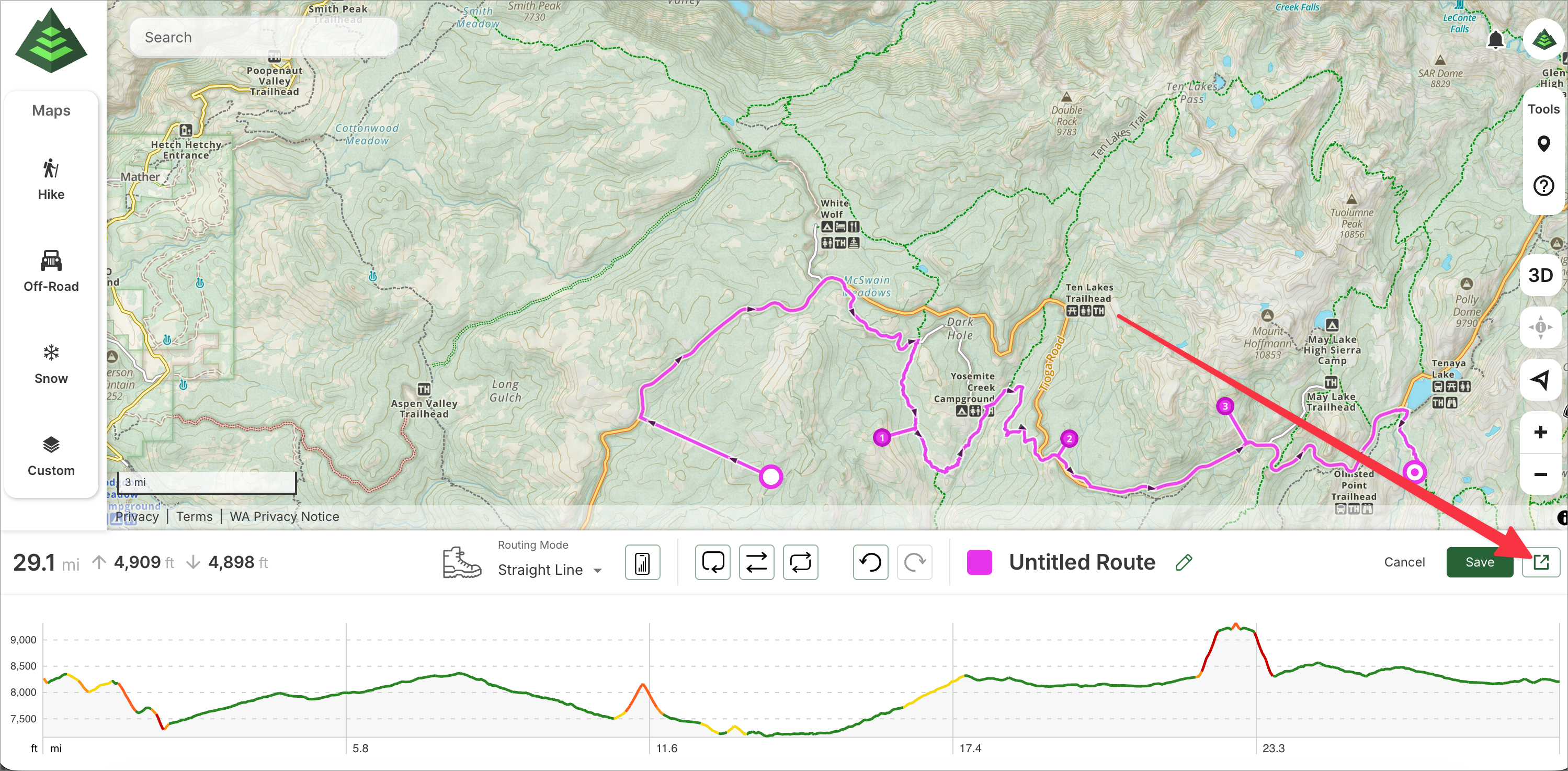

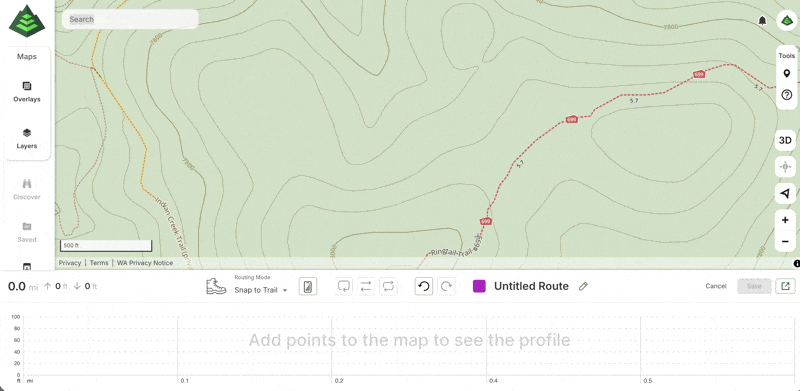

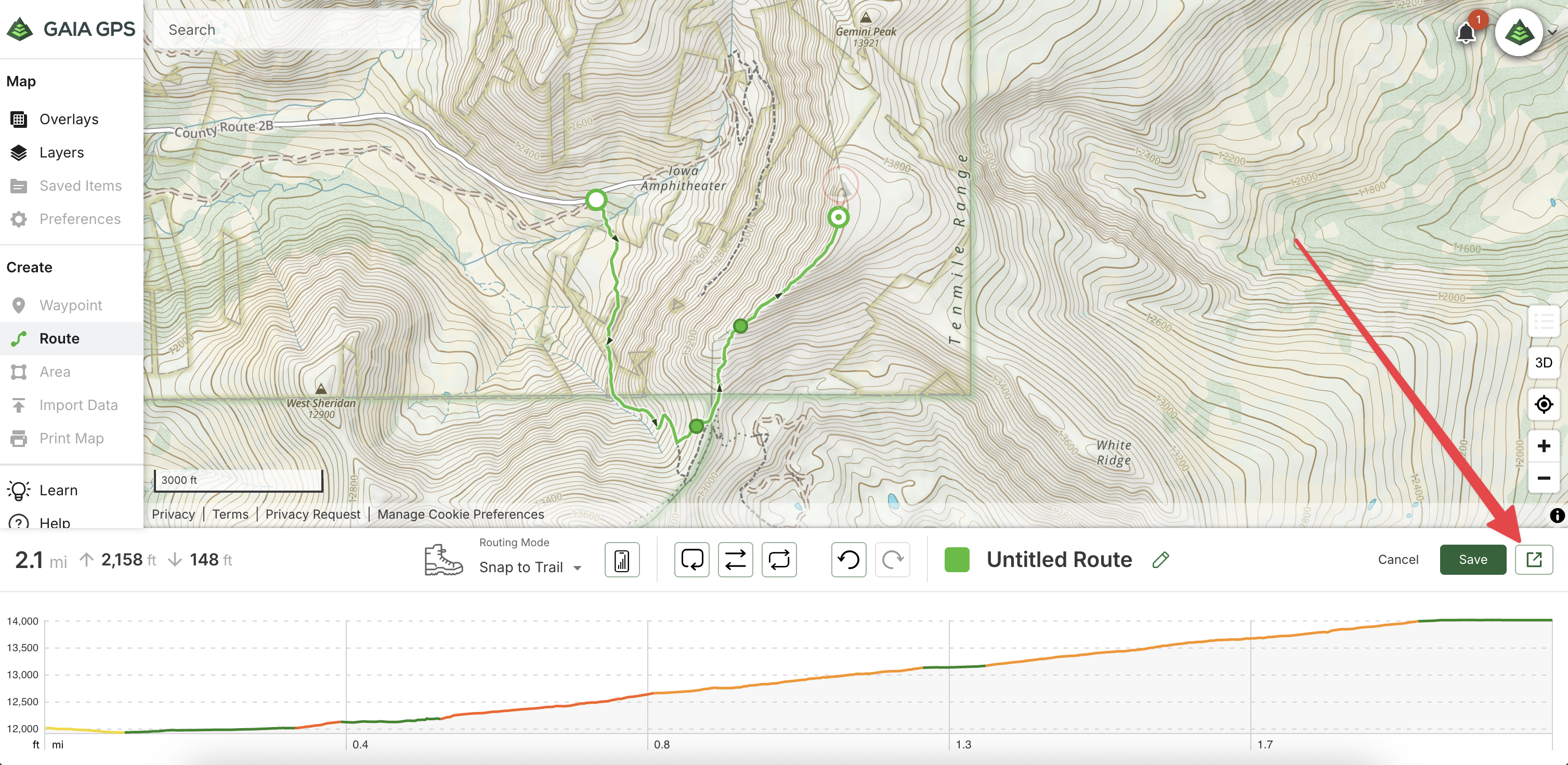

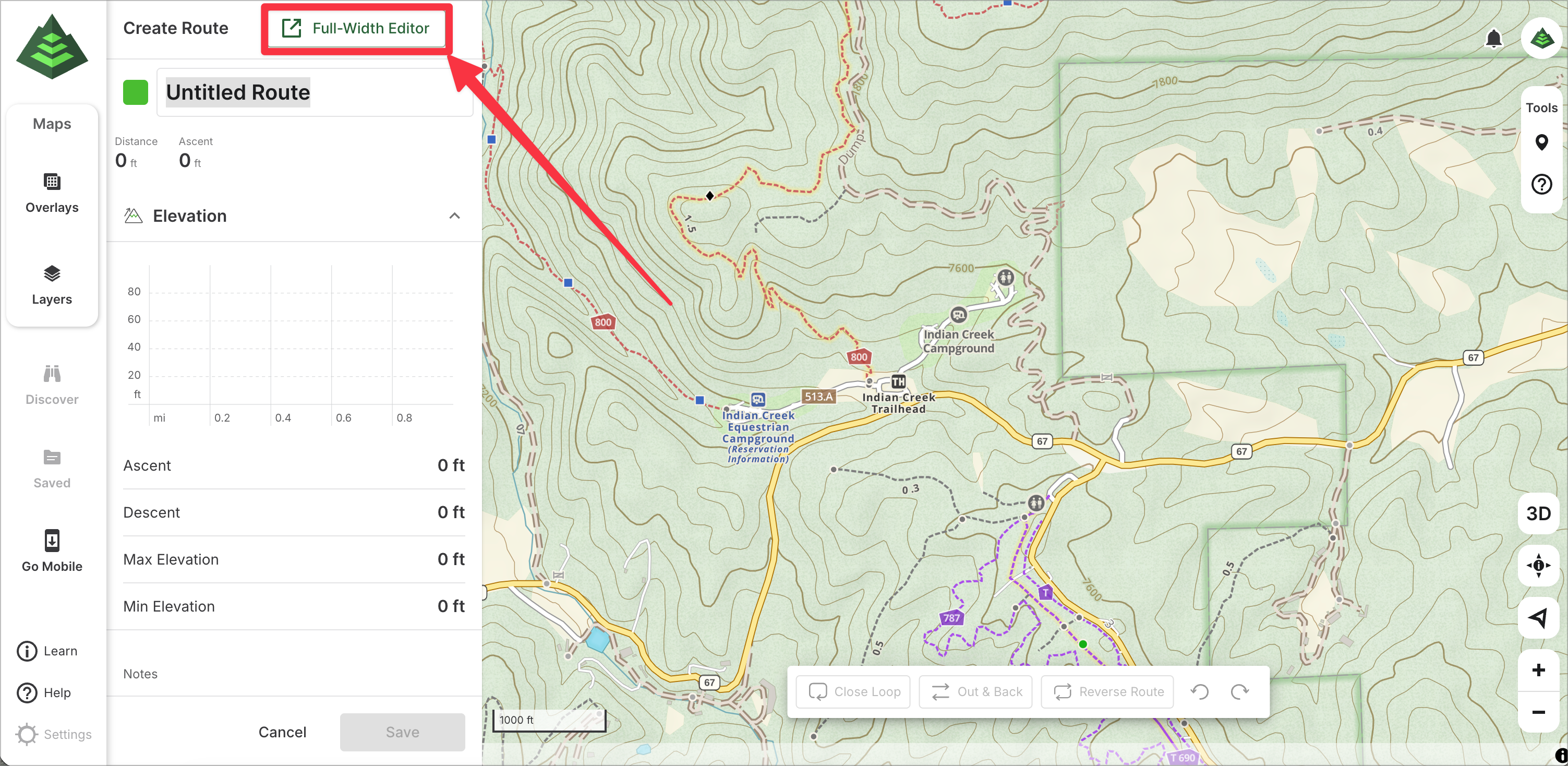

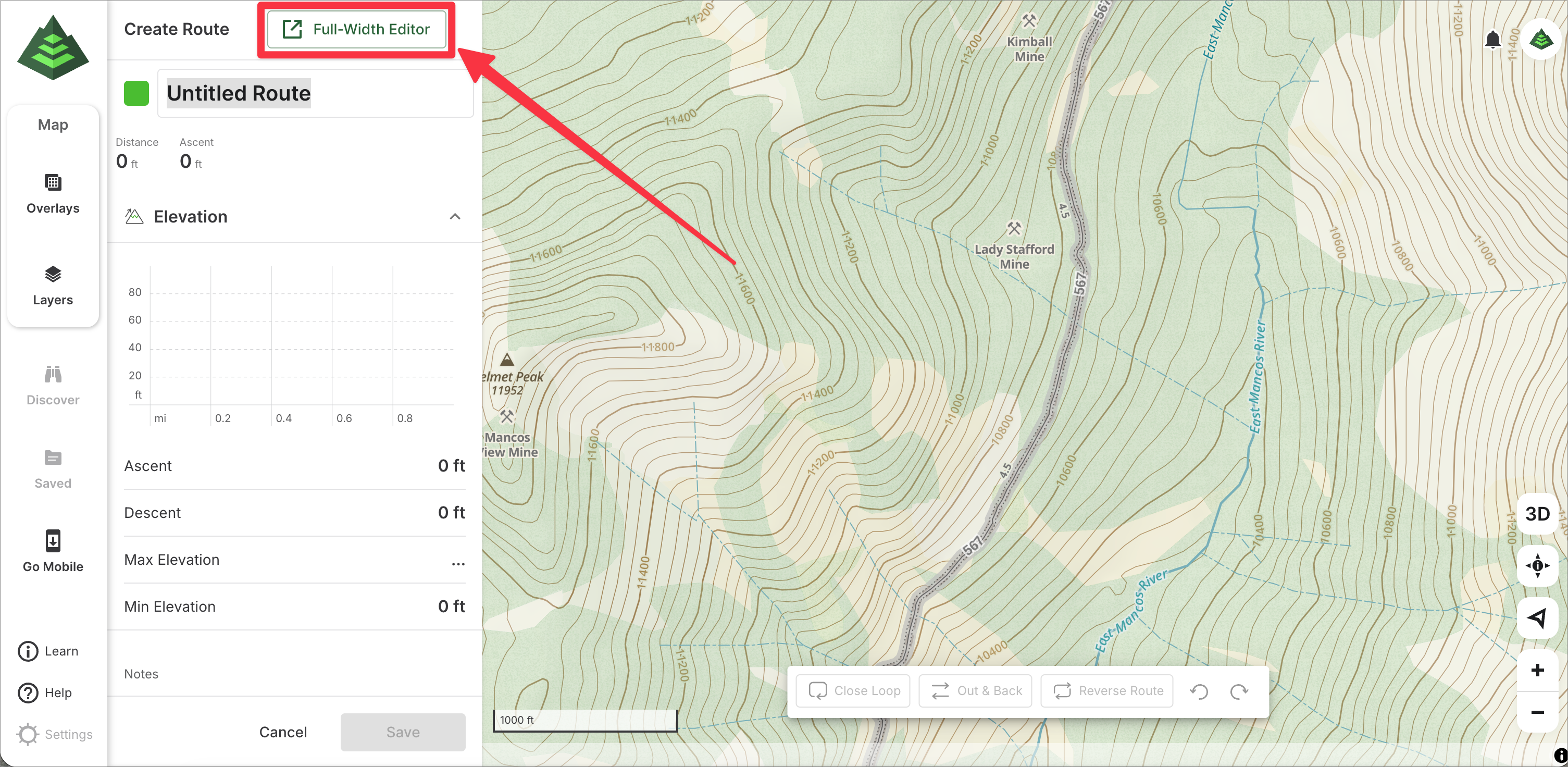

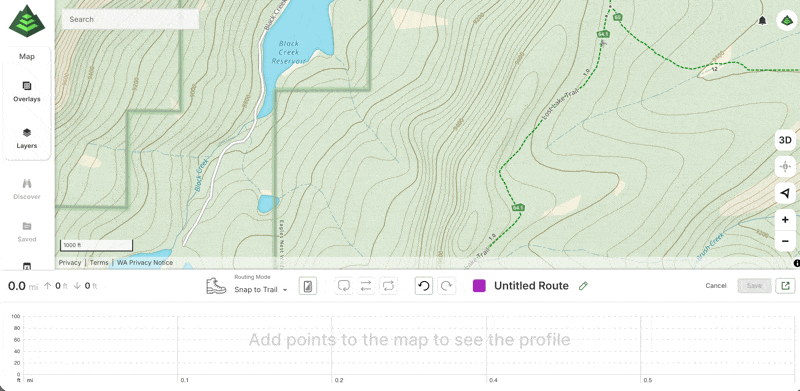

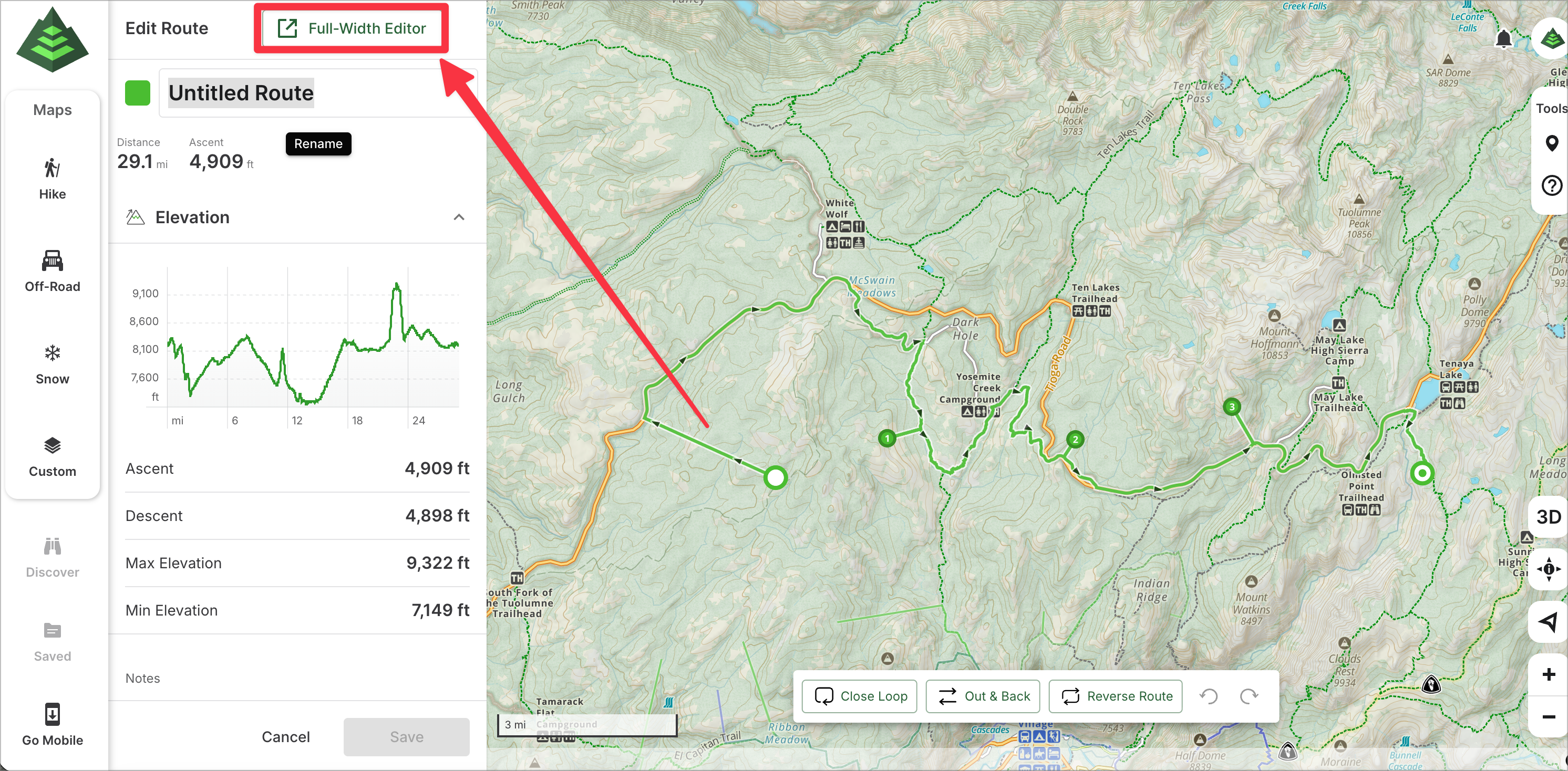

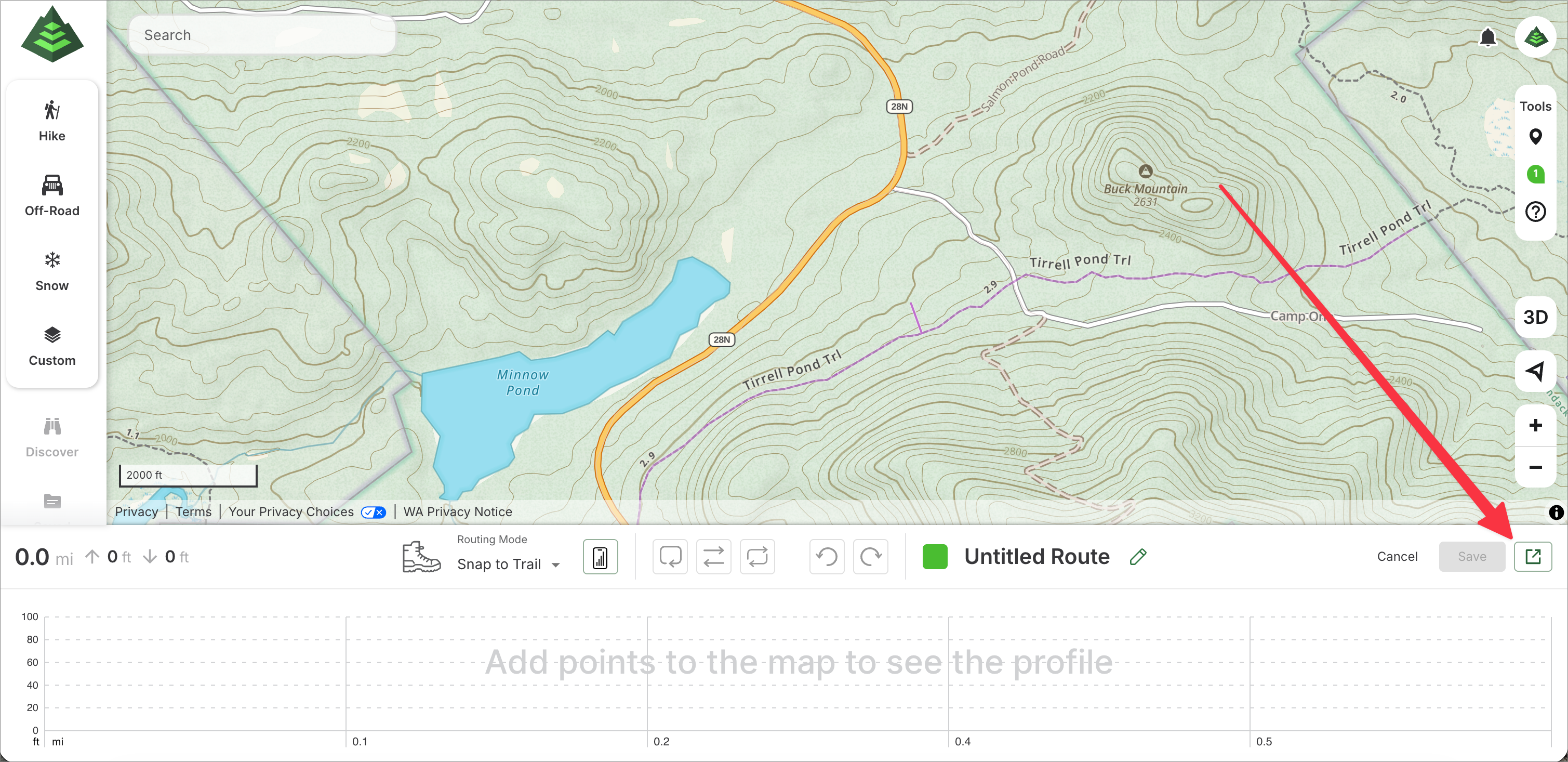

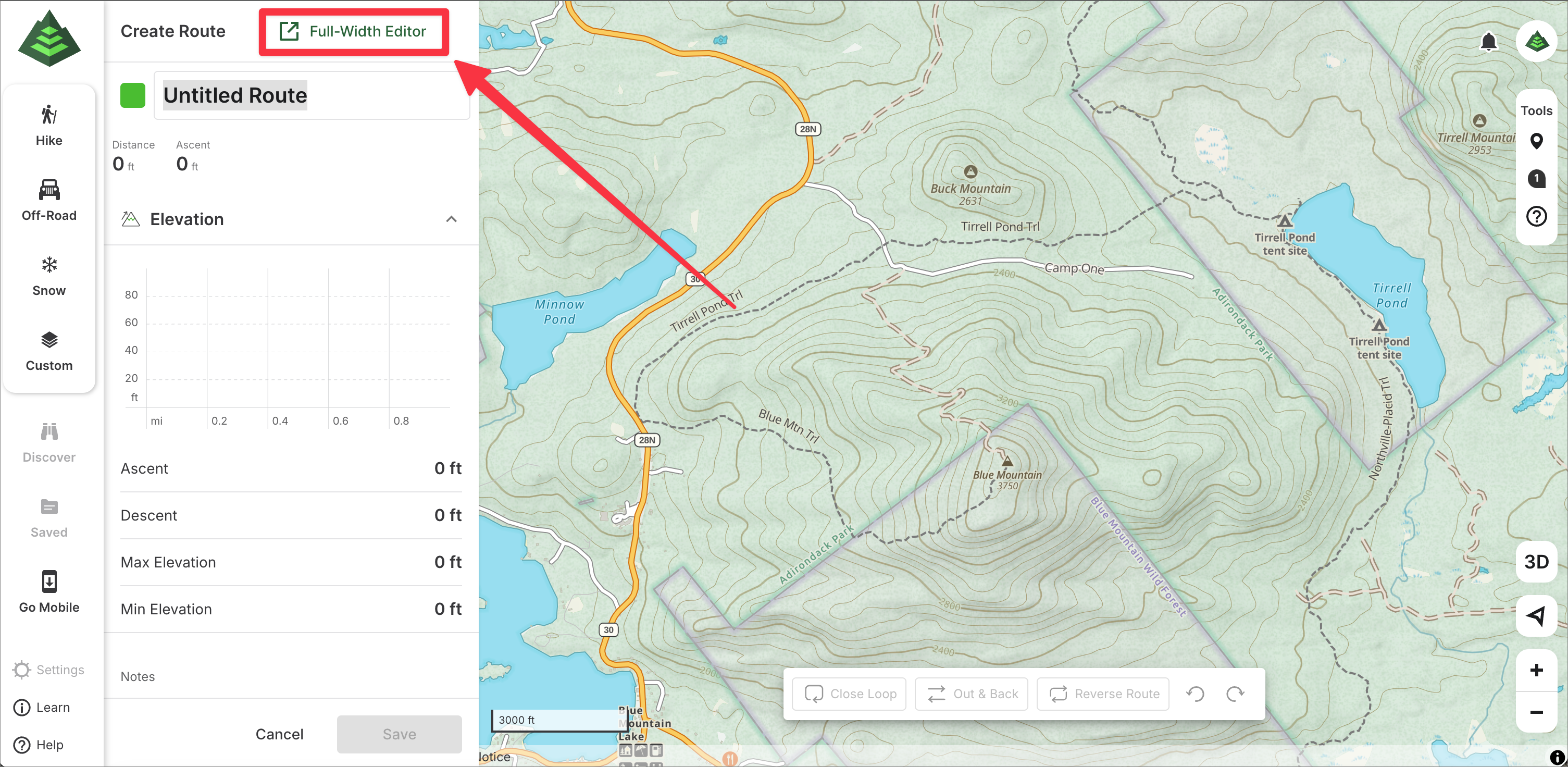

4. Click the green "New Route Editor" button at the top of the edit route details page to activate the New Route Editor.

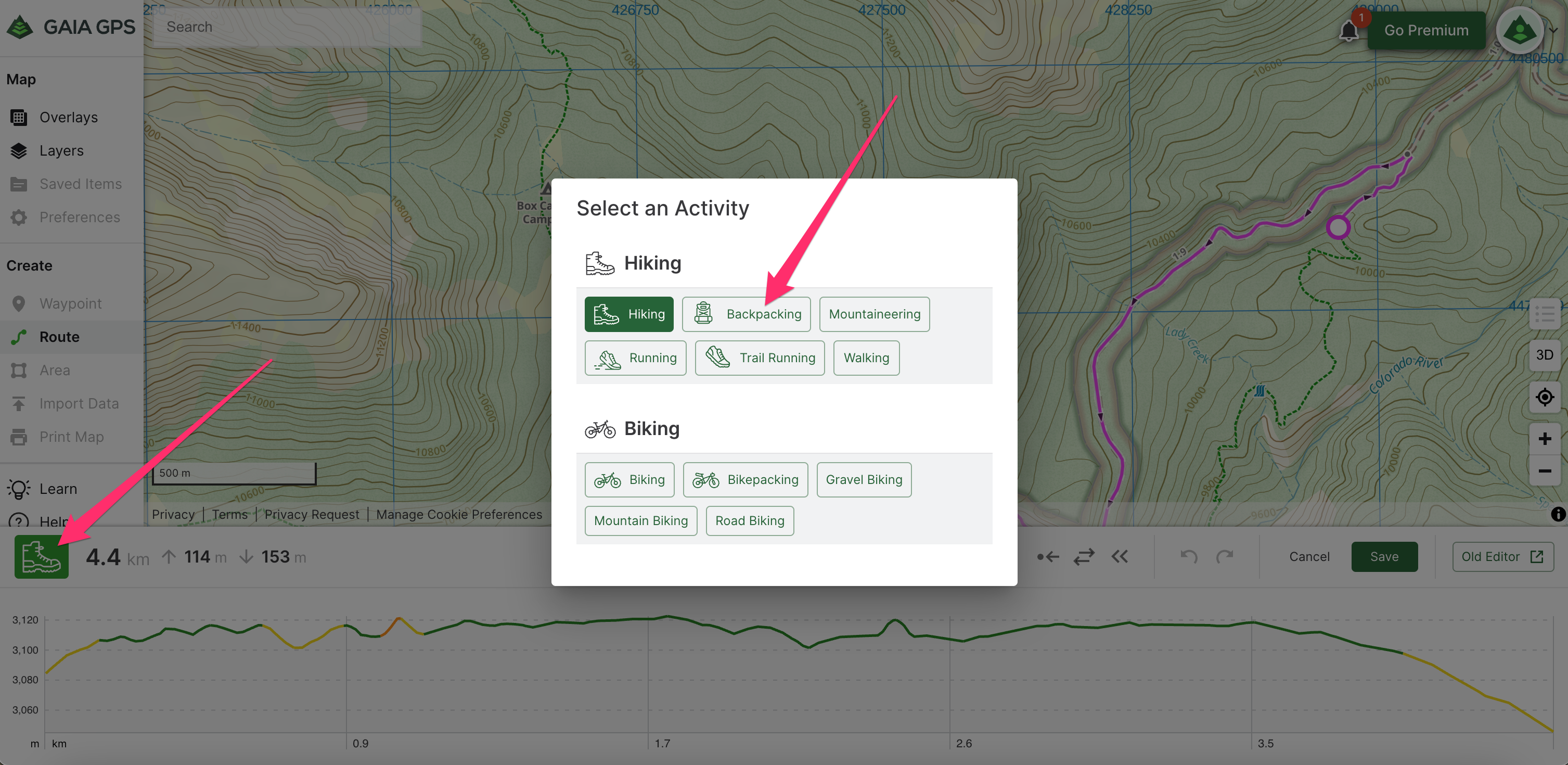

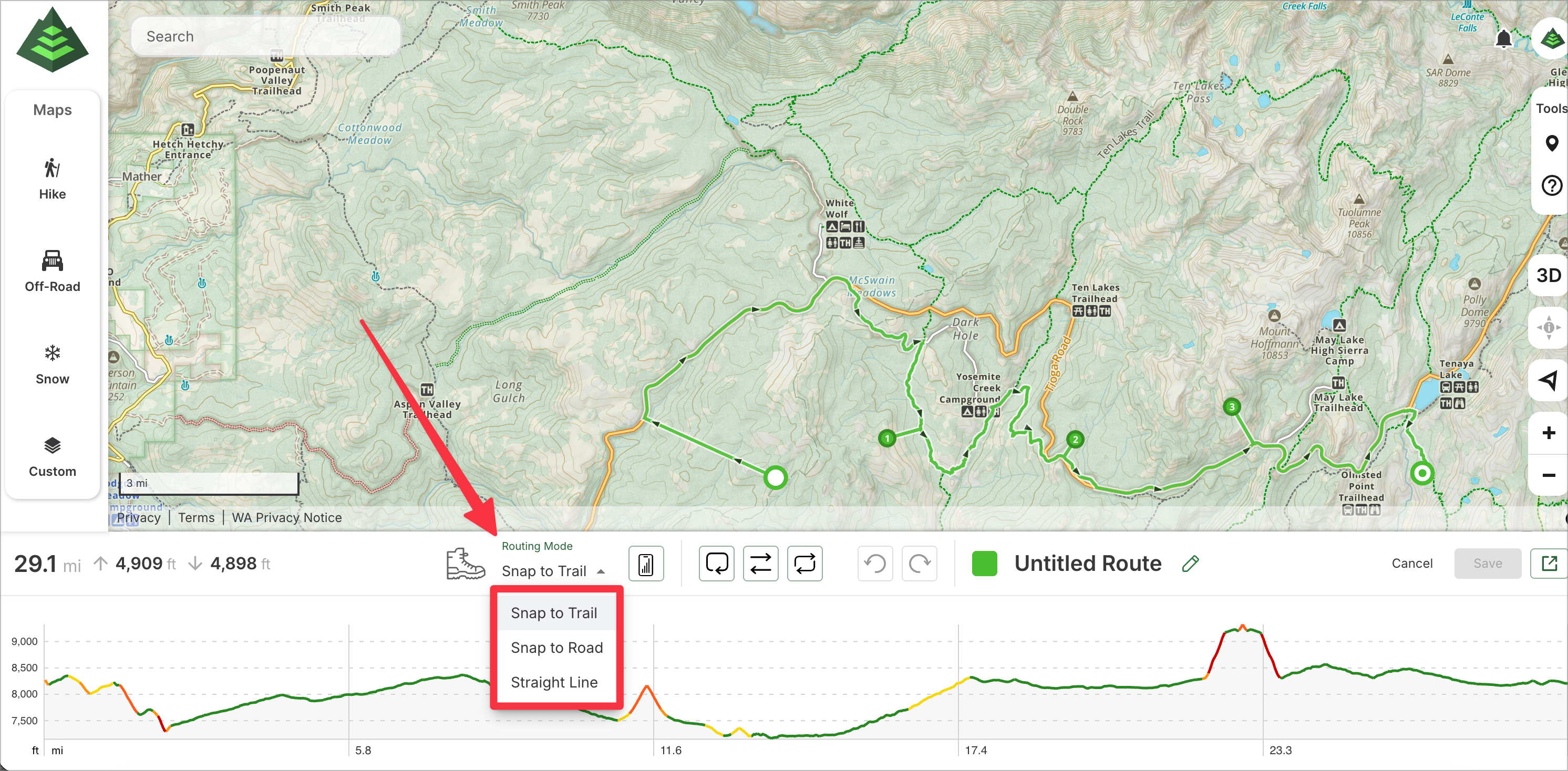

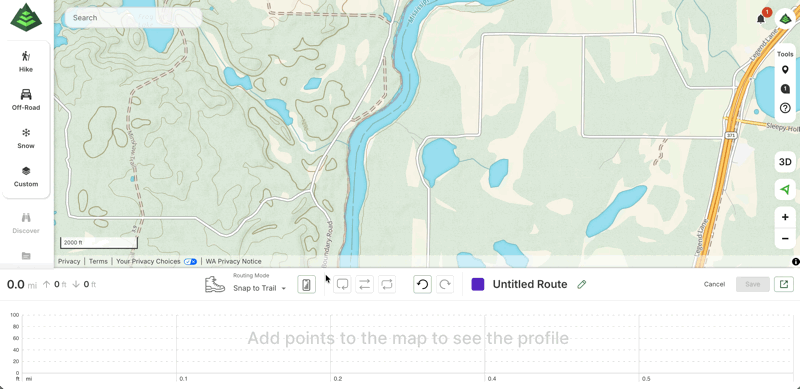

5. Click the activity icon to select the route activity

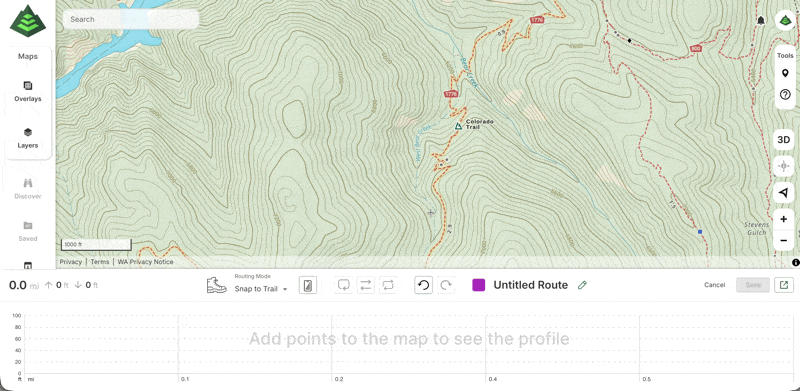

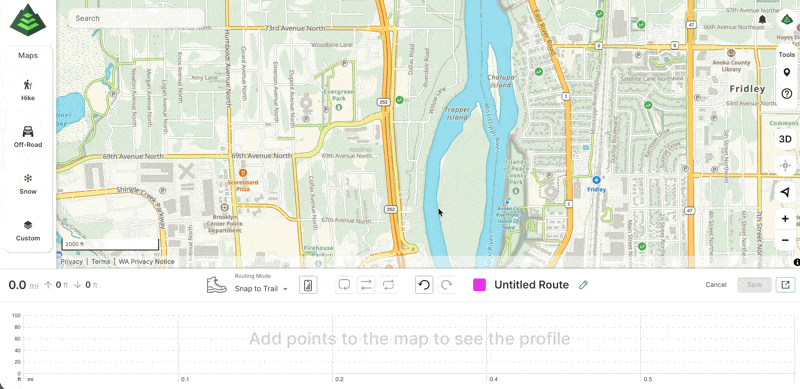

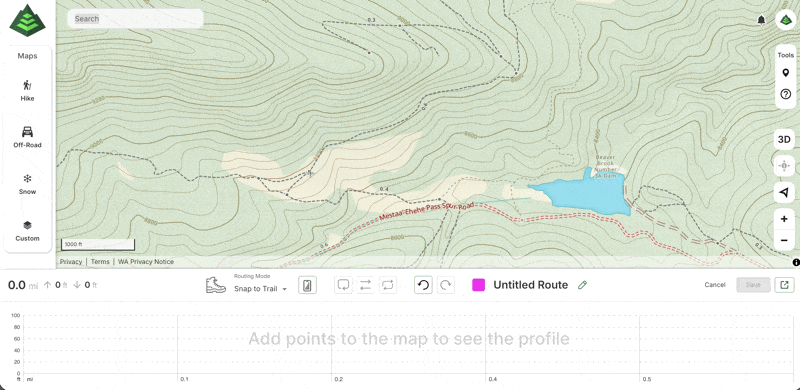

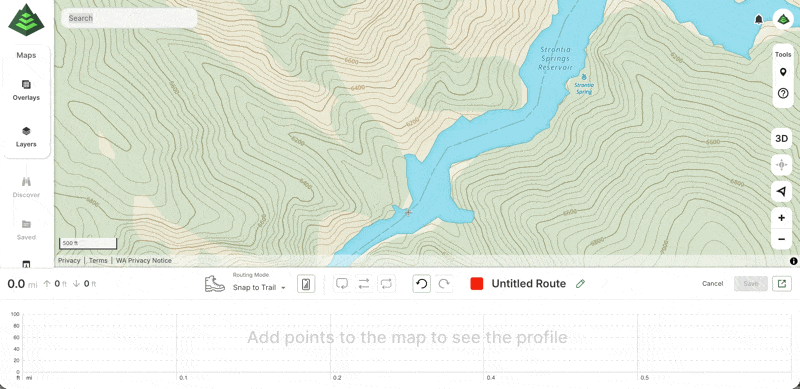

6. Click the map to create the starting point for your route.
7. Click the map again to add points along your route. Add as many points as you'd like.
- Click, hold, and drag the map to pan around.
- Scroll to zoom the map in and out.
8. If needed, adjust the route line and delete route points:
- Click, hold, and drag the route line or a route point to move it to a new location.

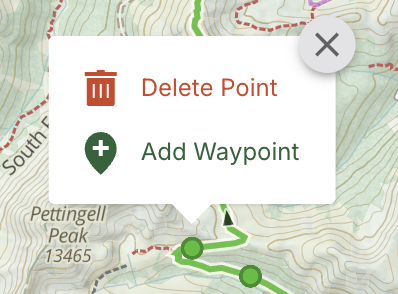

- Click a point, then click "Delete Point" (red trash can) to delete the point.
9. If needed, click Undo to remove the last segment or edit.
10. Click Reverse to reverse the entire route. The direction arrows on the route line will change and the elevation profile will update.
11. Click Back to Start to navigate the route on the quickest route back to the start
12. Click Out and Back if you want your route to turn around at the ending point and navigate back to the start of the route

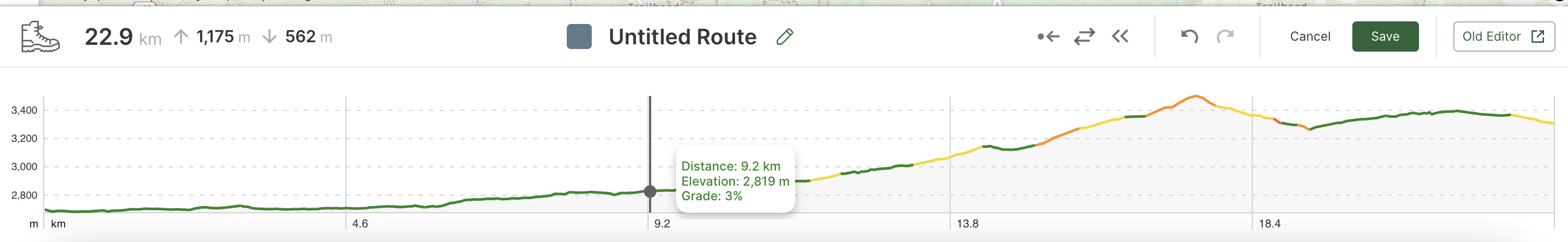

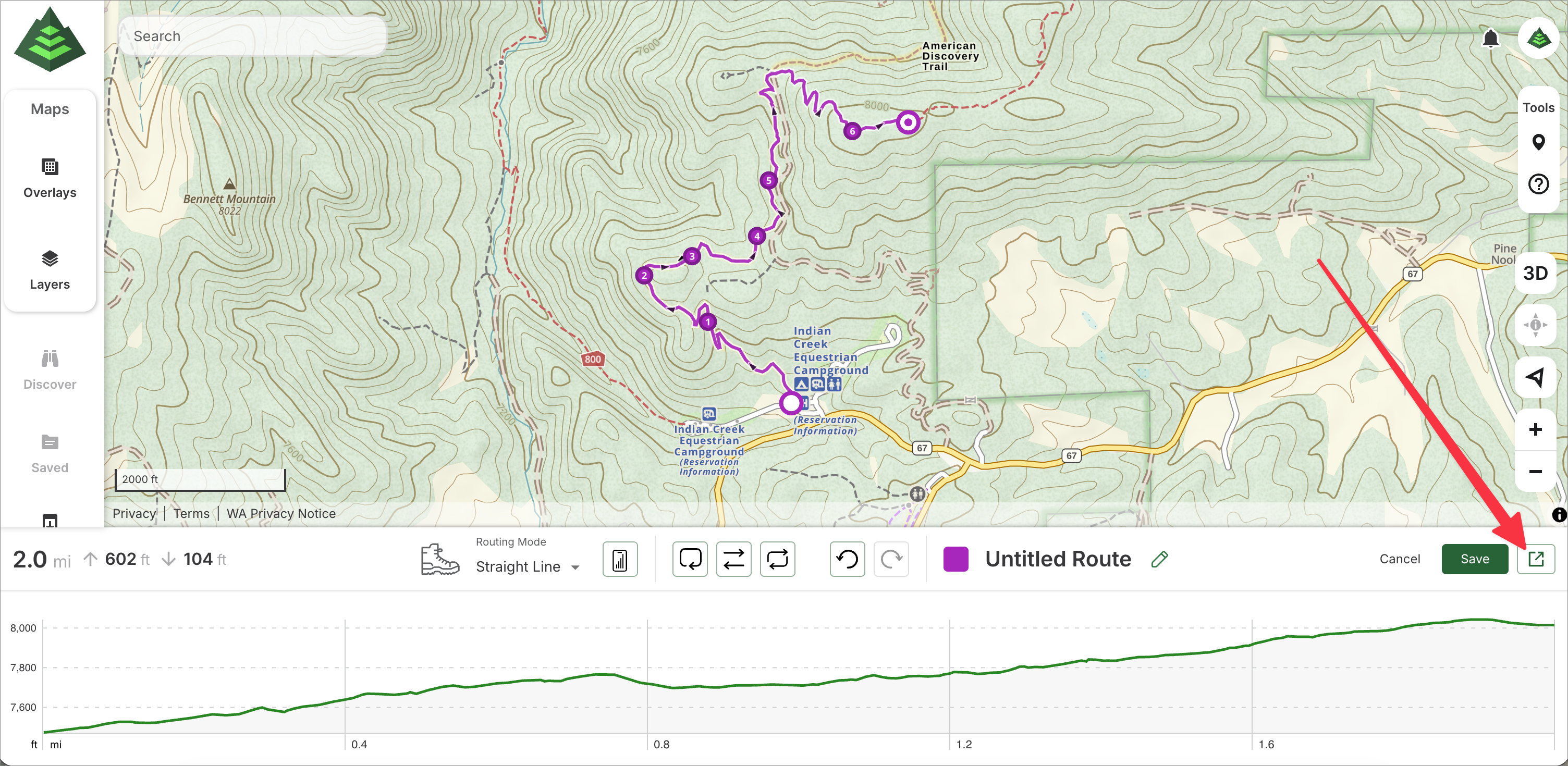

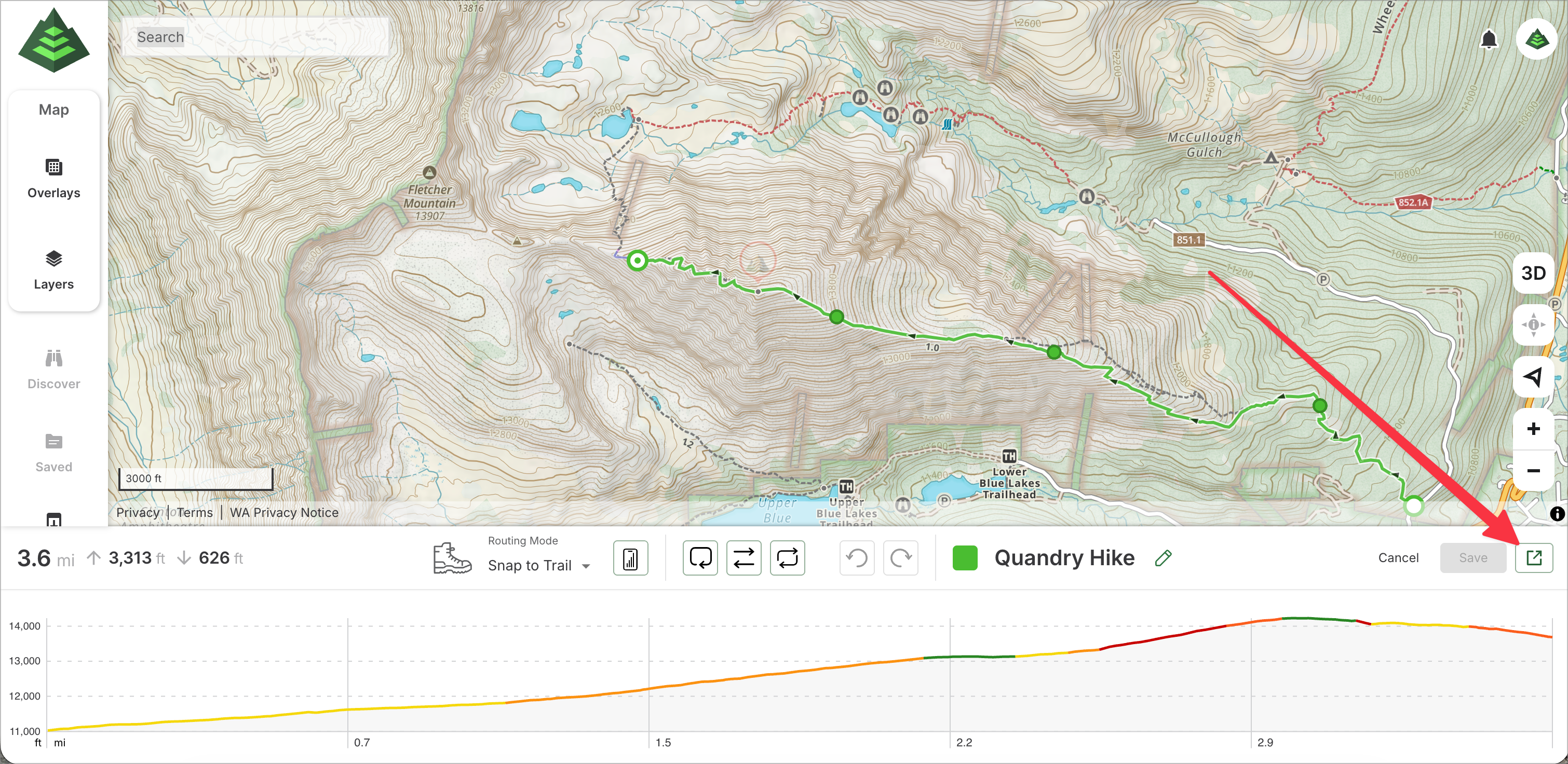

13. View the route distance, and cumulative ascent/descent in the elevation profile graph at the bottom of the screen.

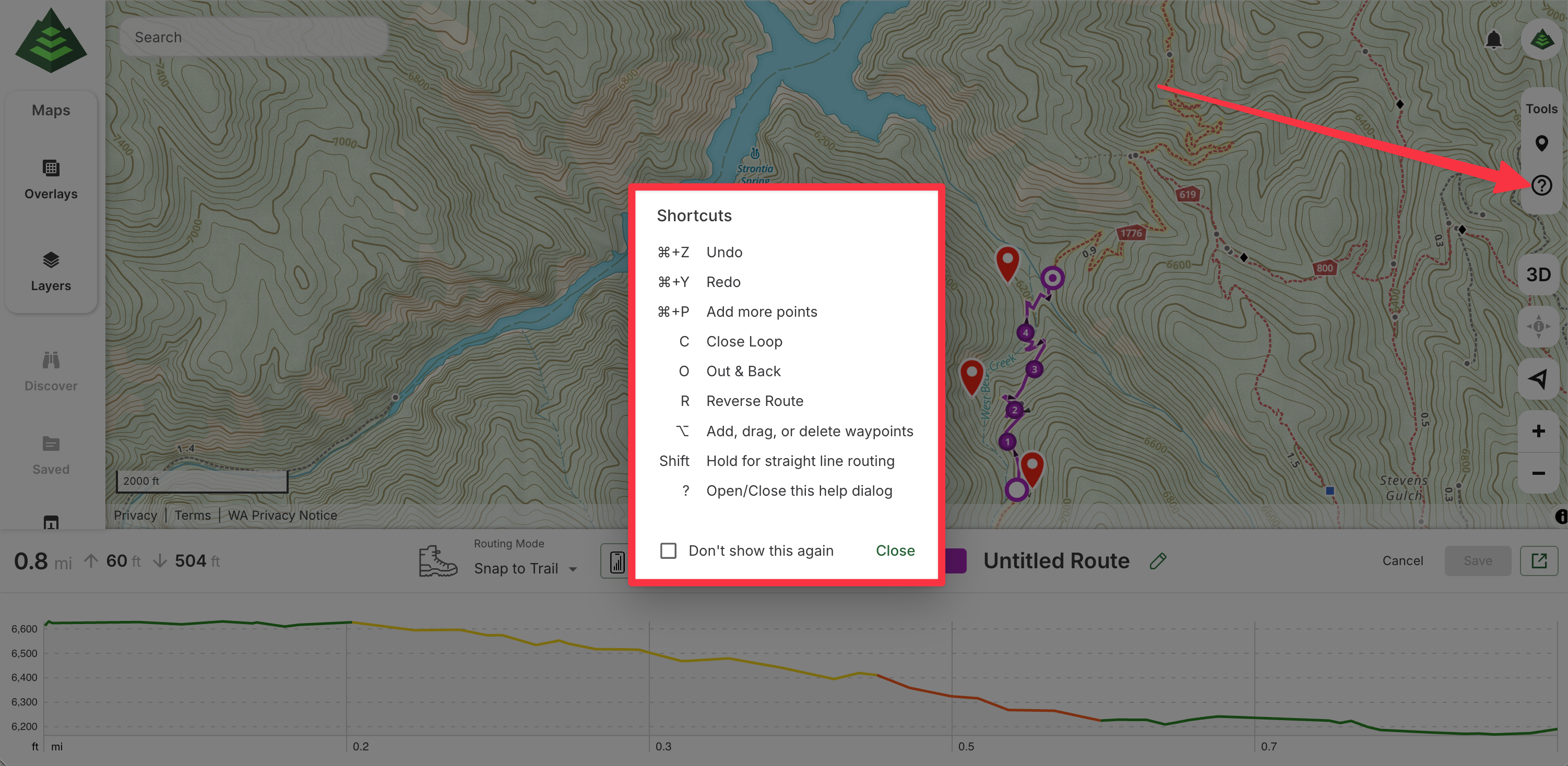

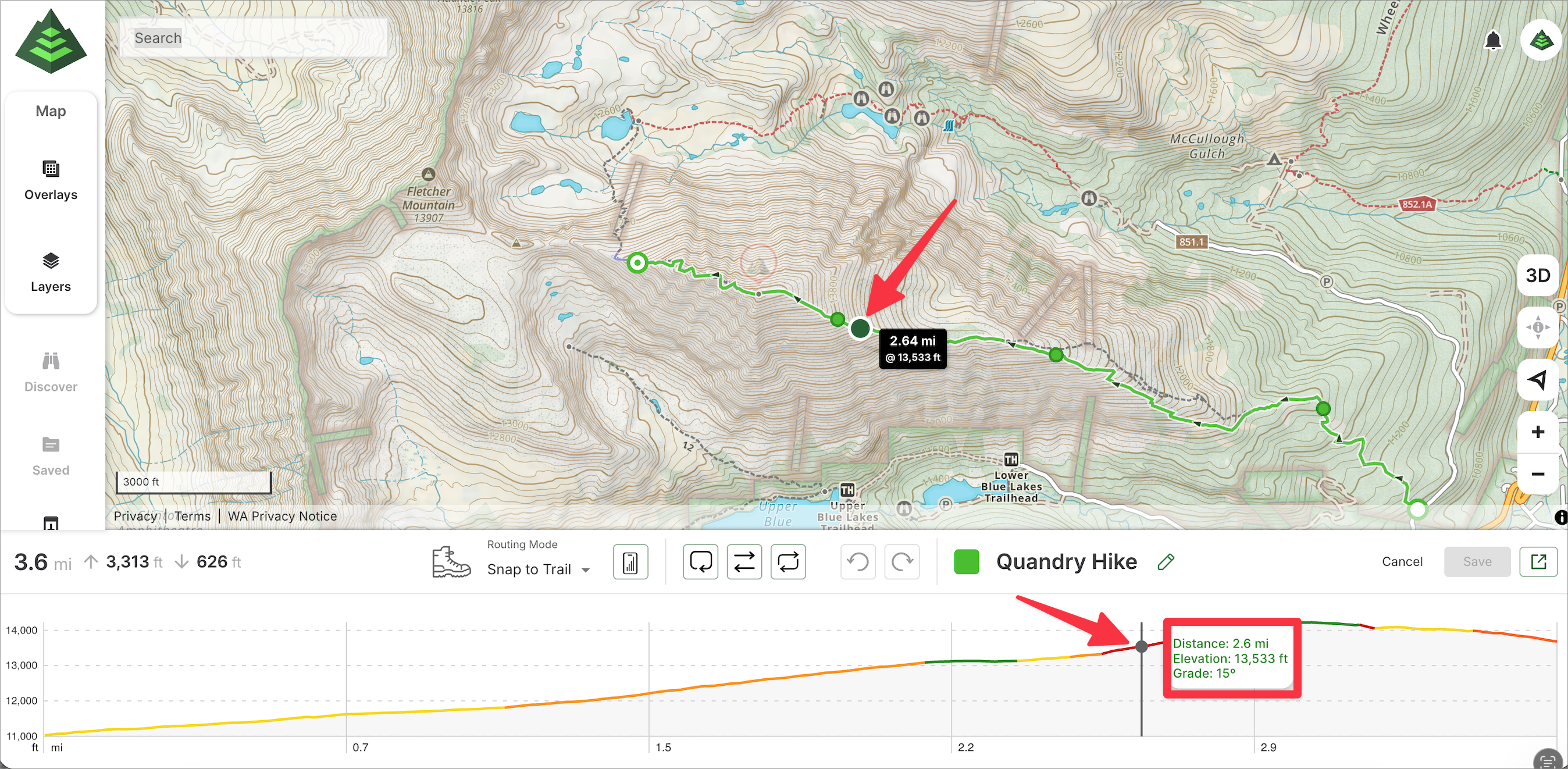

The colors of the route on the elevation profile graph represent the steepness scale of the route:
- Green = < 10°
- Yellow = < 17°
- Light orange = < 24°
- Dark orange = < 31°
- Red = Everything else

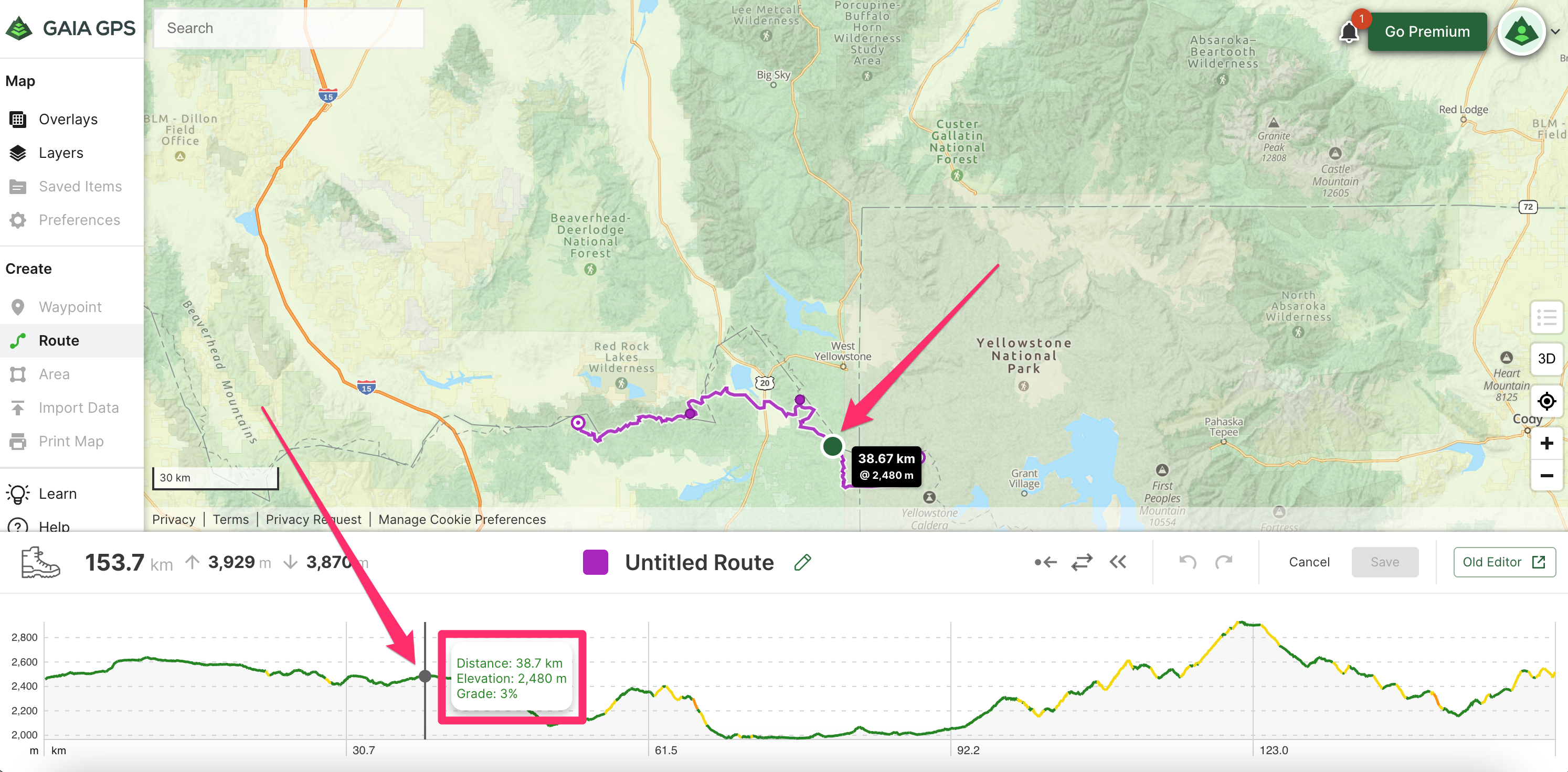

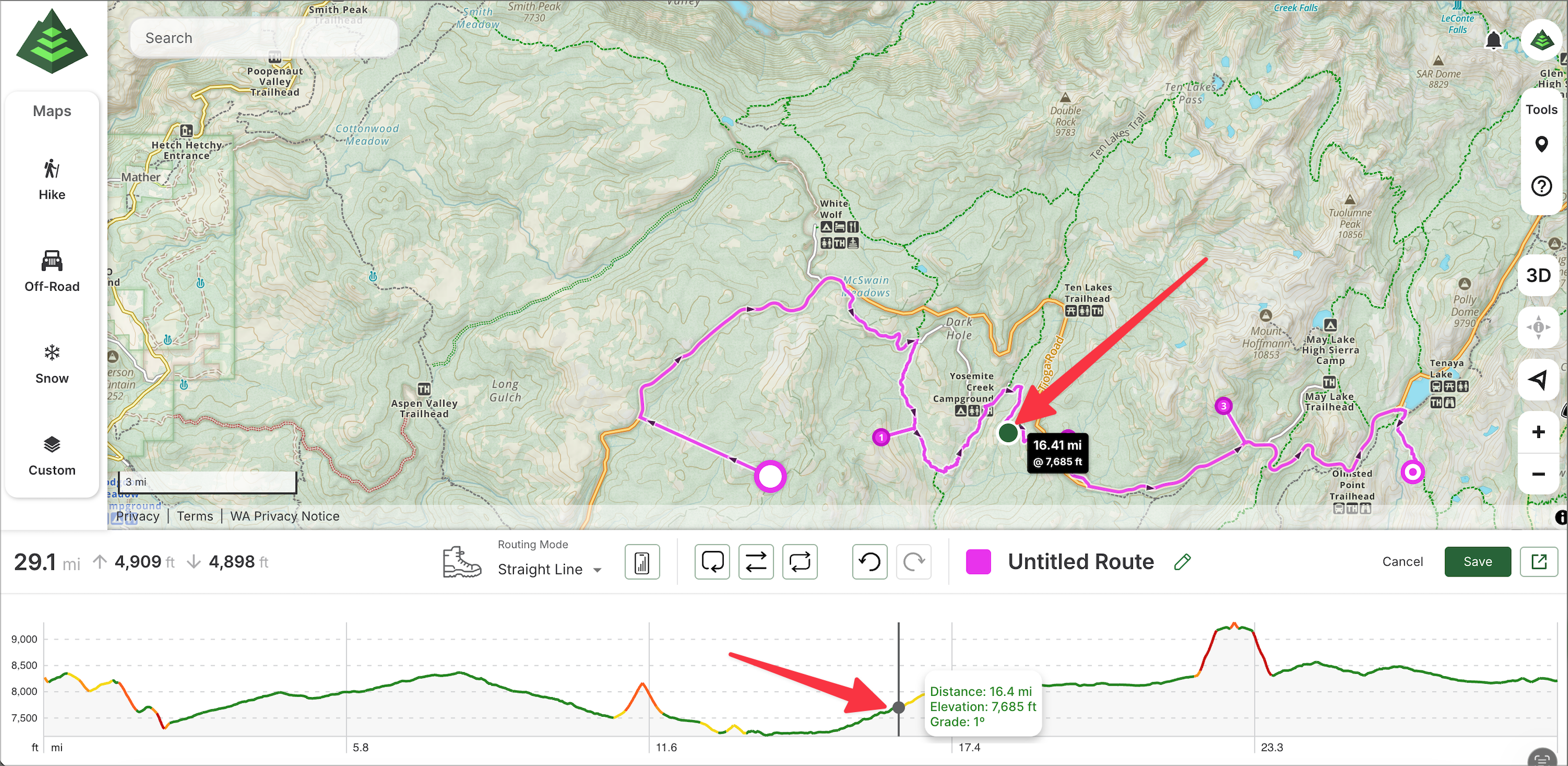

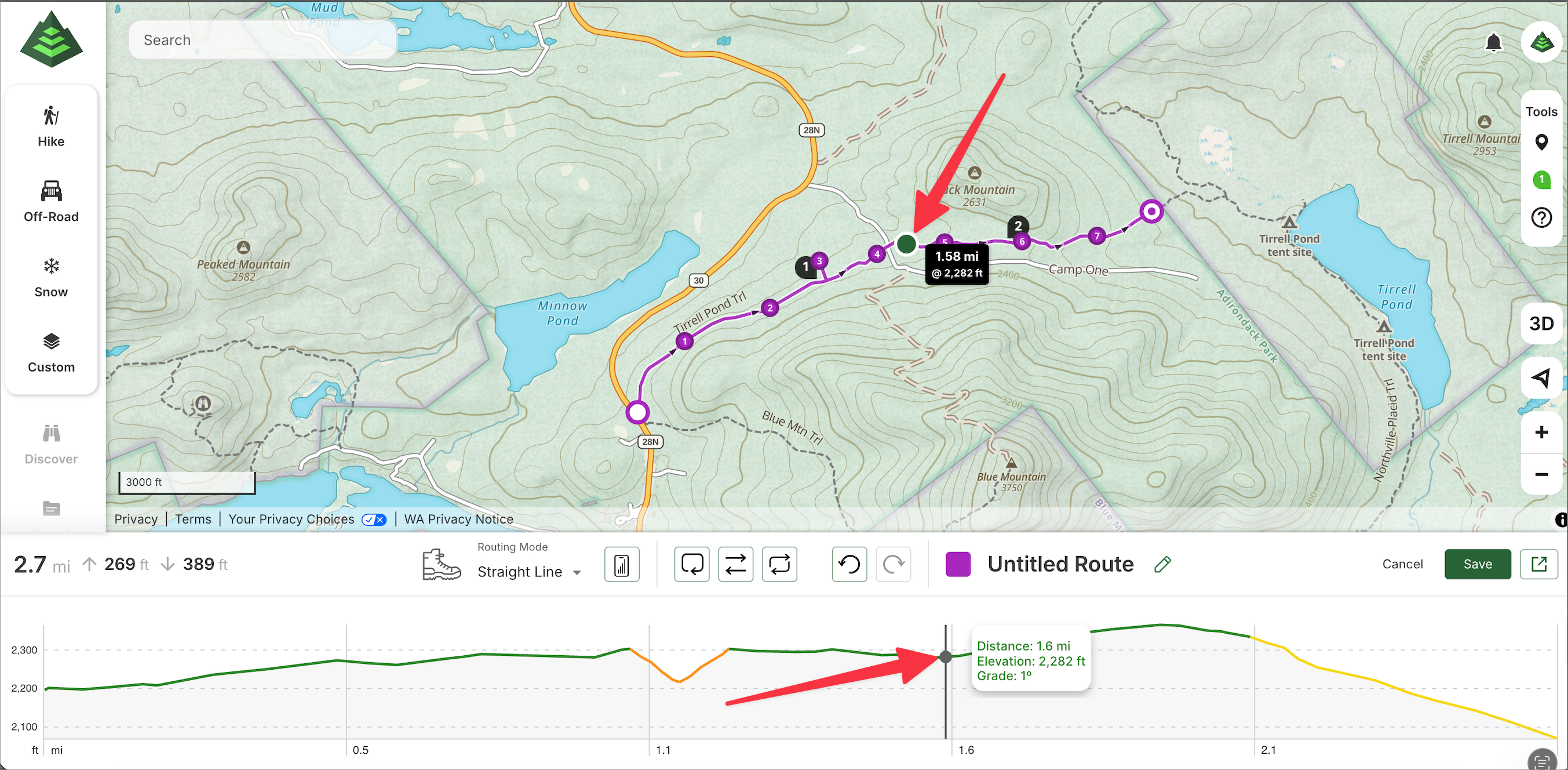

14. Hover over the interactive elevation profile graph to see corresponding locations along your route. The New Route Editor graph shows the selected location's distance, elevation, and grade.
15. Convert any route point to a waypoint:
- Click a point, then click Add Waypoint.
10. To save your route, click the Save button.

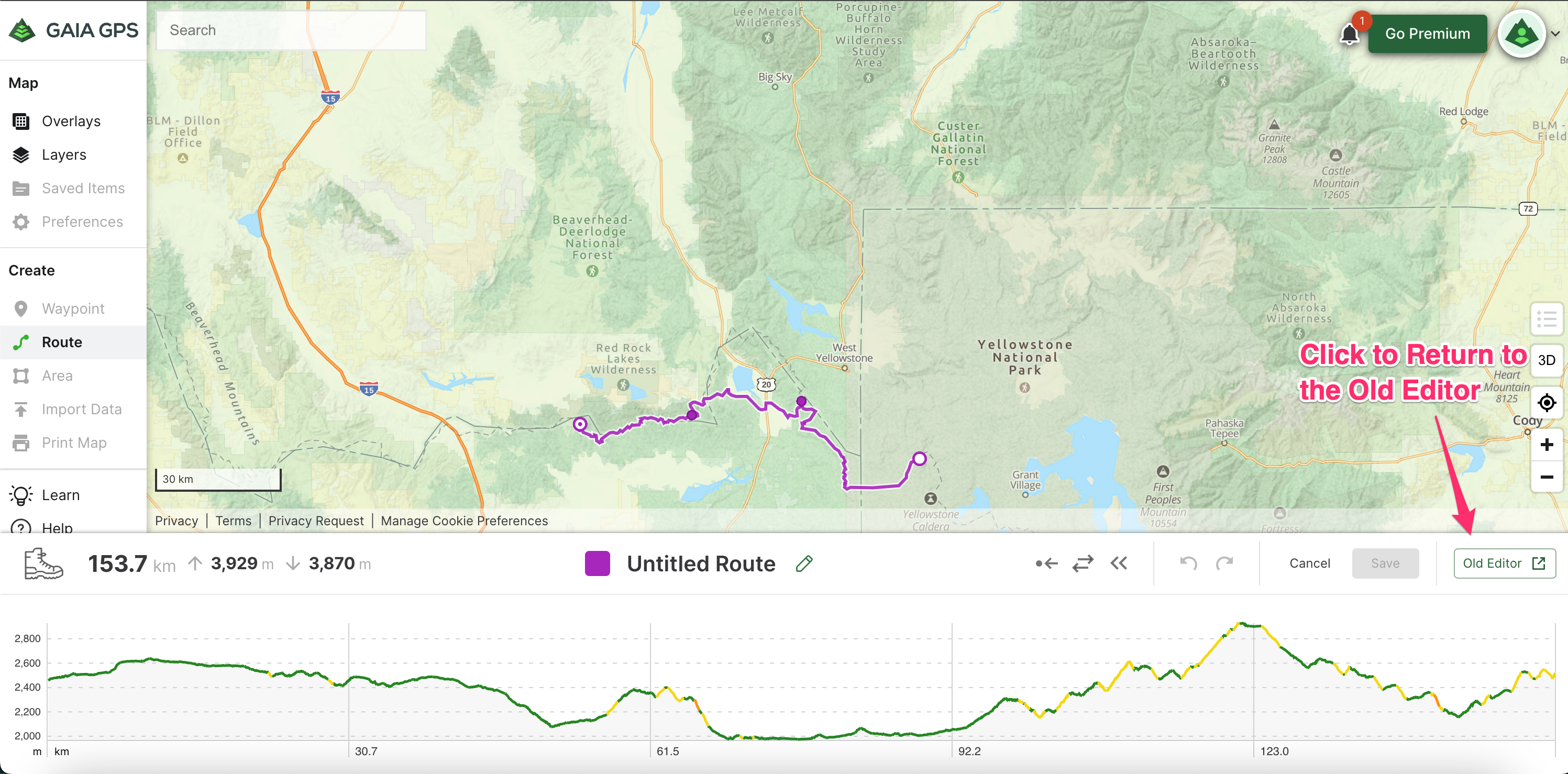

Please note that you can return to the Old Route Editor at any time by clicking Old Editor.
Save the Route
- Add a Route Title and any Notes.
- Change the route's color by clicking on the color icon left of the title.
- Click Save.
- Your route is now saved. Sync your data to access the route on your devices.
Edit your Routes
After you save a route, you might want to customize the route or you may need to edit it if your plans change. To edit a route in the Old and New Route Editor, follow the instructions here: Edit a Saved Route on gaiagps.com
Snap-to-Trail Notes
The Snap-to-Trail feature utilizes OpenStreetMap (OSM) data. Use OSM-based map sources like Gaia Topo for the best results. Here is a partial list of snap-to-trail compatible map sources:
- Gaia Topo
- Satellite Topo
- Satellite with Labels
- Gaia Streets
- OpenCycleMap HD
- Landscape
- Outdoors
- Terrain HD
Also note:
- Snap-to-trail data is not available for Antarctica at this time.
Combined Snap-to-Trail and Straight-Line Routes

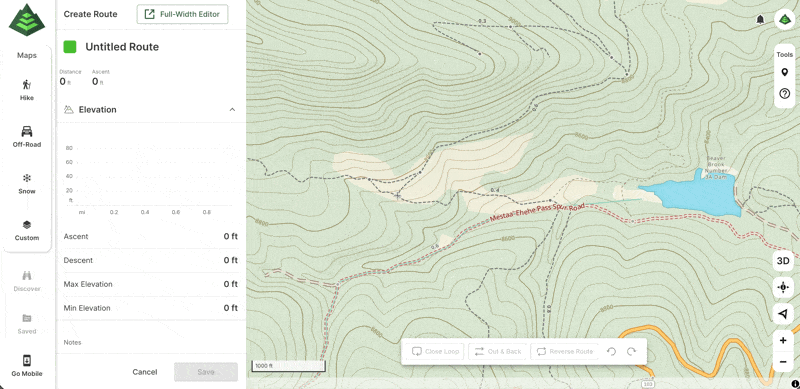

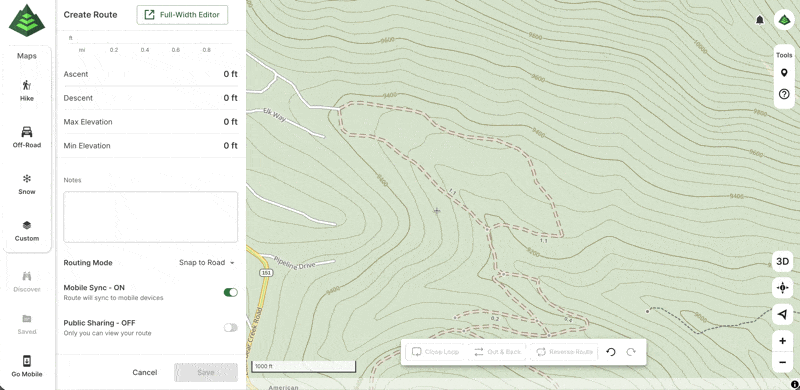

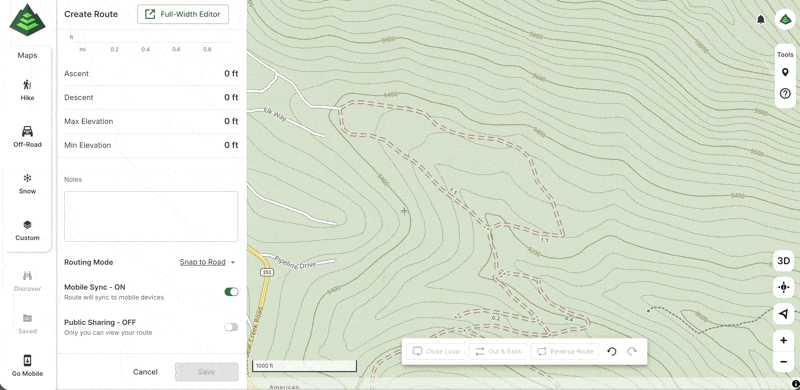

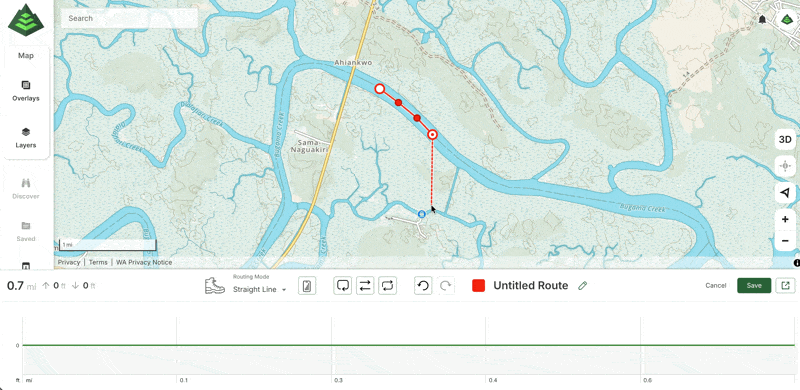

Choose Hiking, Cycling, or Driving mode and start your route. The routing tool will default to straight line when no trails or roads are nearby.
Straight-Line Notes
Straight-line mode has numerous applications. Some possible uses include:
- Establishing an off-trail hiking route
- Setting a backcountry skiing skin track
- Evaluating day lengths on a river trip
- Measuring fly-over distances between two points
